Metal Fencing 3d Curved Bending PVC Coated Y Post 3d Fencing with Barbed Wire Fencing Panels Galvanized Airport

Airport fences, also known as "Y-shaped security defense nets," are high-strength protective structures comprised of V-shaped support posts, reinforced welded mesh, security connectors, and hot-dip galvanized razor wire.

    Product Description

    Airport fences, also known as "Y-shaped security defense nets," are high-strength protective structures comprised of V-shaped support posts, reinforced welded mesh, security connectors, and hot-dip galvanized razor wire. They are primarily used in high-security locations such as airports and military bases. Razor wire can be added to the top for enhanced protection, combining isolation, protection, and decorative features. These fences are also suitable for roads, railways, ports, and municipal areas.

    Features

    This fence is welded from 5.0mm high-strength low-carbon steel wire, with mesh sizes of 50mm x 100mm or 50mm x 200mm. V-shaped reinforcement ribs and four transverse bends significantly enhance impact resistance. The posts are 60x60mm rectangular steel or 70mm x 100mm hanging posts, finished with hot-dip galvanizing and electrostatically sprayed with polyester powder coating in RAL international colors. They are corrosion-resistant and age-resistant. They are secured with SBS fasteners and M-clip/clip attachments, allowing for adjustable installation heights to accommodate uneven terrain. They also feature an anti-theft feature to prevent disassembly.

    products specification

    Airport Fence Specification
    Mesh Panel Types Panel height Panel Width Mesh Opening Wire diameter Y- Post
    3D welded mesh panel 2000-3500mm 2000mm 2500mm 3000mm 50*200mm
    50*100mm
    75*150mm
    3-6mm 60*60mm
    80*80mm
    100*100mm
    Chain link mesh panel 2.0m*15m
    2.4m*15m
    3.0m*15m
    Distance of post:2.5-3.0m
    50*50mm
    60*60mm
    80*80mm
    3-6mm 48mmOD
    60mmOD
    358 mesh panel 2000-3000mm 2500mm 76.2*12.7mm(3’’*0.5’’) 3-6mm 60*60mm
    80*80mm
    100*100mm
    Razor wire type Razor wire roll diameter
    BTO-10; BTO-12; BTO-18; BTO-22; BTO-28; BTO-30; CBT-60; CBT-65 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 960mm

    Advantages

    1. Characterized by beautiful, practical, easy transportation and installation.
    2. Strong terrain adaptability, the link position with the column can be adjusted up and down with the ground undulation;
    3. Four bending reinforcement bars are added to the transverse direction of the airport fence mesh to increase the strength of the mesh surface.

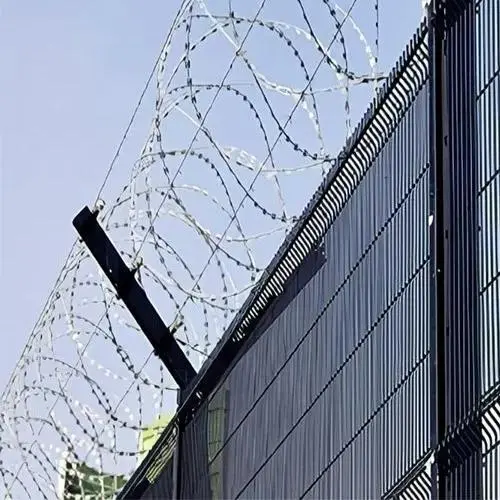

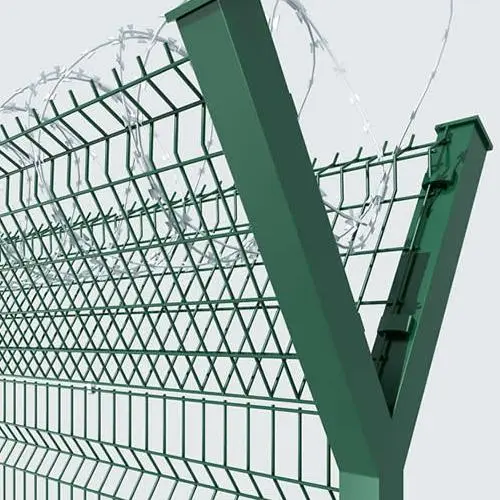

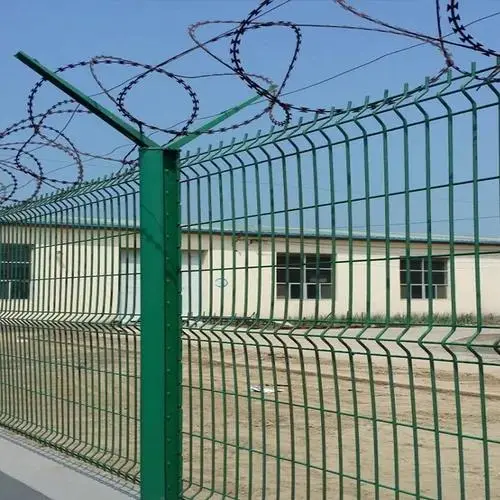

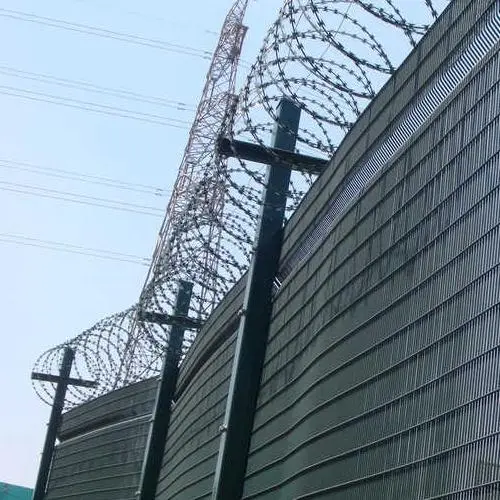

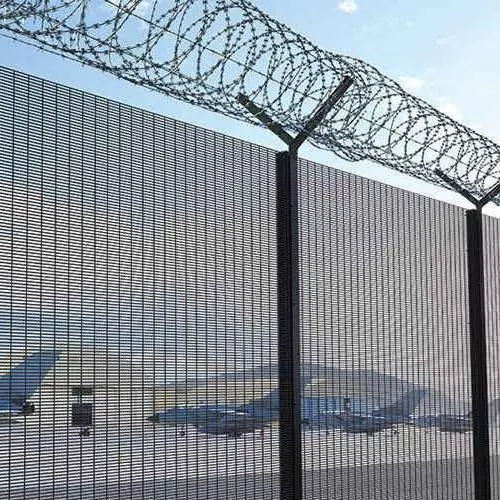

    Airport  (1)
    Airport  (2)
    Airport  (3)

    Selling point

    The top of the airport fence with razor barbed wire, razor barbed wire and well enhance the security and protection performance. It has the characteristics of anti-aging, sunlight resistance, weather resistance and so on. The mesh is connected by special SBS fasteners, which effectively prevents destructive disassembly, and the four horizontal bending reinforcement bars increase the strength of the mesh surface.
    airport fence drawing
    Y Post Specs
