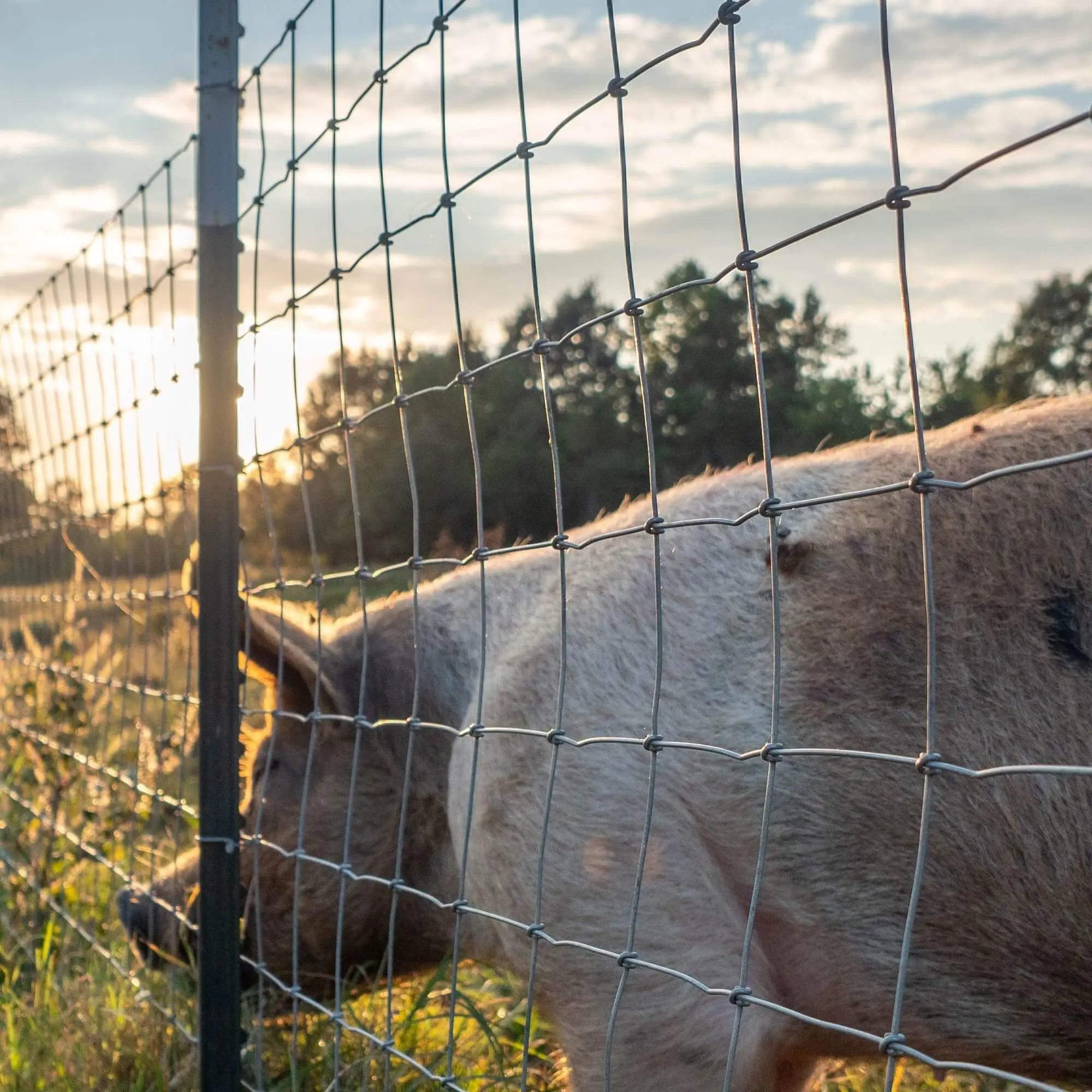

Field Fence
Fixed Knot Woven Wire Field Fence Roll Goat Hog Fencing Wire Mesh Galvanized Sheep Cattle Game Wire Farm Fence
products specification
| FIELD CATTLE FENCE | |||
| Mesh sizes | G.W.(KG) | Wire diameter(mm) | |
| 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.0/2.5mm |
| 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.0/2.5mm |
| 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.0/2.5mm |
| 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.0/2.5mm |
| 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.0/2.5mm |
| 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.0/2.5mm |
| 7/150/1245/50 | 102+114+127+140+152+0178+203+229 | 26 | 2.0/2.5mm |
| 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.0/2.5mm |
| 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.0/2.5mm |
| 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.0/2.5mm |
| DEER FENCE | |
| Vertical wire distance | 3", 4", 5", 6", 7" |
| Mesh width | 75mm, 150mm, 300mm, 450mm(3" , 6", 12", 18") |
| Wire diameter | 2.4mm-2.6mm |
| Knot wire | 2.0mm-2.24mm |

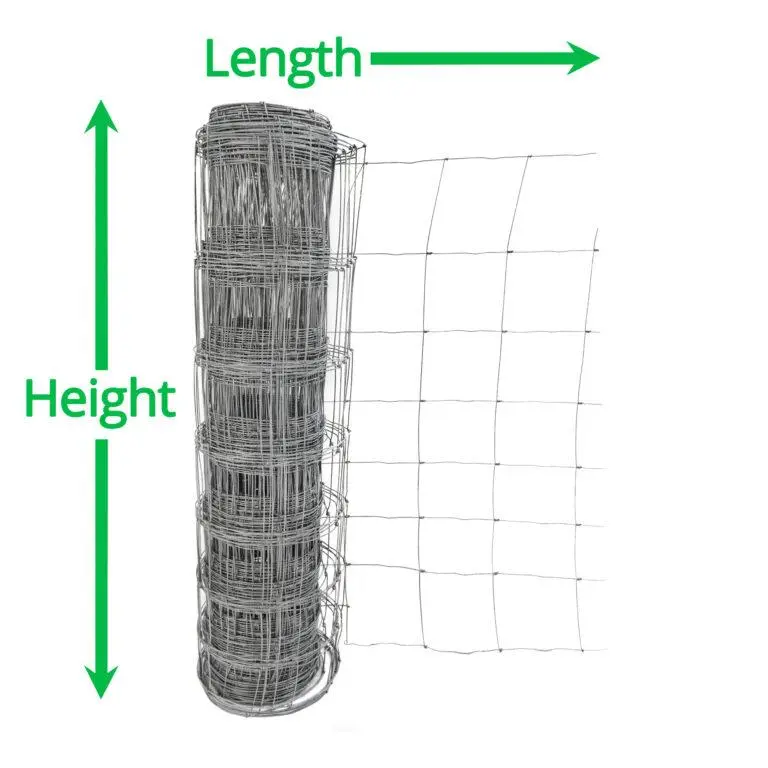

| Roll width | Any length ≤2.5m |
| Roll length | 50m, 100m ,200m |
Field Fence Advantage
Small openings on the bottom to keep small wild animals out
Wide openings on the top to keep large wild animals away and livestock confined
Resistant to animal impacts
Extremely weather resistant
Easy to install and Long lasting
Fixed-knot, Extra and uniformly zinc coated
Ranch Fence Knot
Widely used for the decoration for the residential area or the road beautiful isolation and garden, feeding, Courtyard, lawn, hotel, supper market, place of entertainment and so on.
3D fence is used as decoration or protection for various facilities in industry, agriculture, Road and transport, etc.

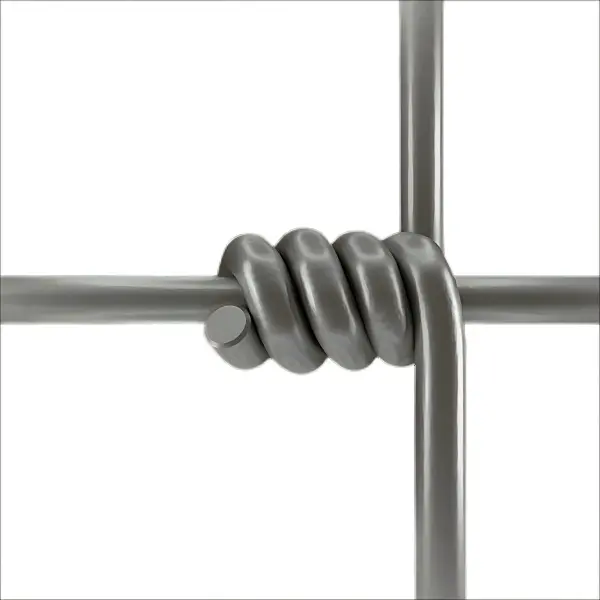

Hinge Joint Knot
The hinge joint knot is composed of multiple, vertical wires that are wrapped around each horizontal wire. It makes a stronger fence than barbed wire, It's where the up-and-down wires gently hold onto the side-to-side wires at each crossing point. This kind of knot is really good at stopping accidents without hurting horses.this kind of knot is really good at stopping accidents without hurting horses.

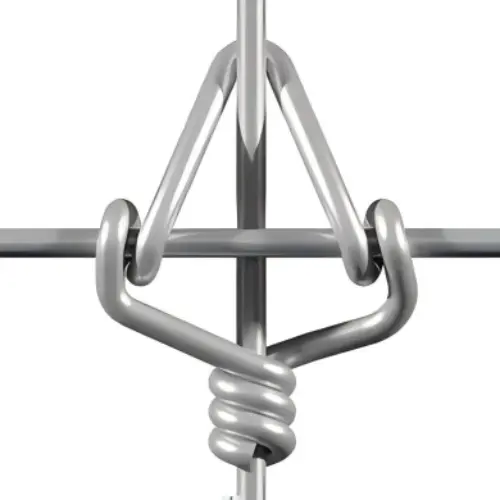

Fixed Knot
This knot uses an extra wire to tie the up-and-down wires with the side-to-side wires, making the fence even stronger. It's stronger than the square knot, which helps to keep animals from bumping into the fence and also holds up well against heavy snow. It's a really tough knot that keeps your animals safe and the fence strong.
