Defensive Barrier
Defensive Barrier Bastion Flood protection Wall Sand Container Barrier Defence
Product Description
Each gabion unit is lined internally with a high-quality non-woven geotextile to securely hold the filling materials within the cells. The geotextile lining is overlapped and fastened to the top edge, while the lower portion is left free to form an effective soil retention seal when folded during installation on site. This specially designed geotextile offers superior UV resistance compared to standard non-woven fabrics, ensuring long-term durability. For extended structures, gabion units can be joined end-to-end using connecting pins, allowing the system to achieve the required length while maintaining structural integrity.
product details
|
Defense Barrier |
|
|
Product Name |
Defense Barrier |
|
Product Type |
Welded Mesh |
|
Material |
Galvanized Steel Wire or Galfan/zinc-5% Aluminum Wire |
|
Wire Diameter |
4.0, 5.0mm, Spring Wire Diameter: 4mm |
|
Geotextile |
250g-400g |
|
Geotextile colour |
Sand clolor, Brown, Gray,and Military Green. |
|
Mesh hole |
76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm |
|
Packing |
wrapped with shrink film or packed in pallet |
Product Specifications
The Application for Welded Gabion Barrier

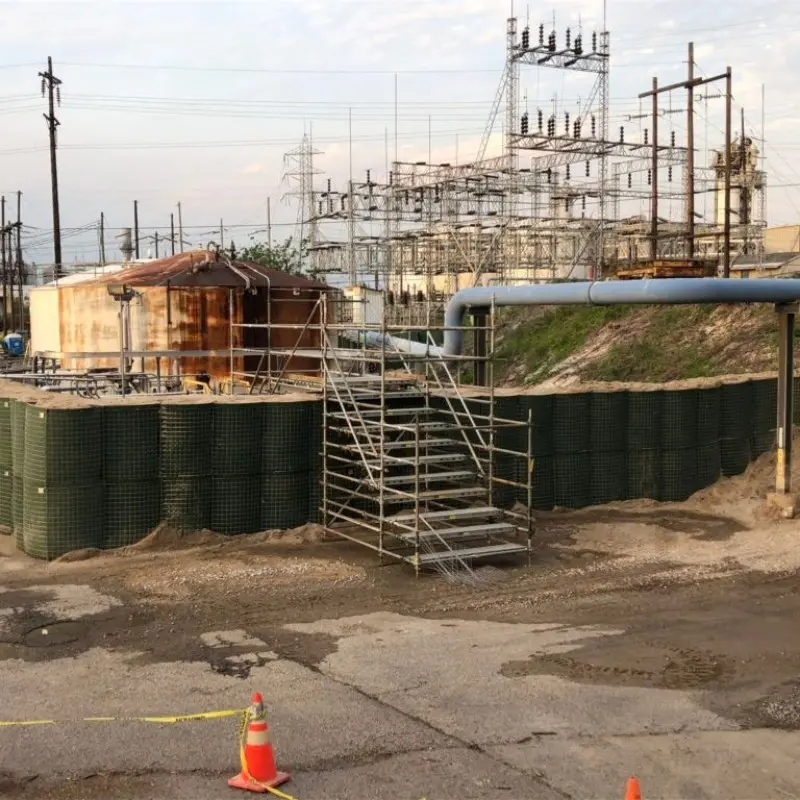

Flood Control
1. Flood Prevention Barrier
From simple perimeter walls to complex base infrastructures, Shuxin products provide rapid and effective flood protection.
2. Permanent or Semi-permanent Dike
Defensive barriers can be used as permanent or semi-permanent dikes to resist flooding.

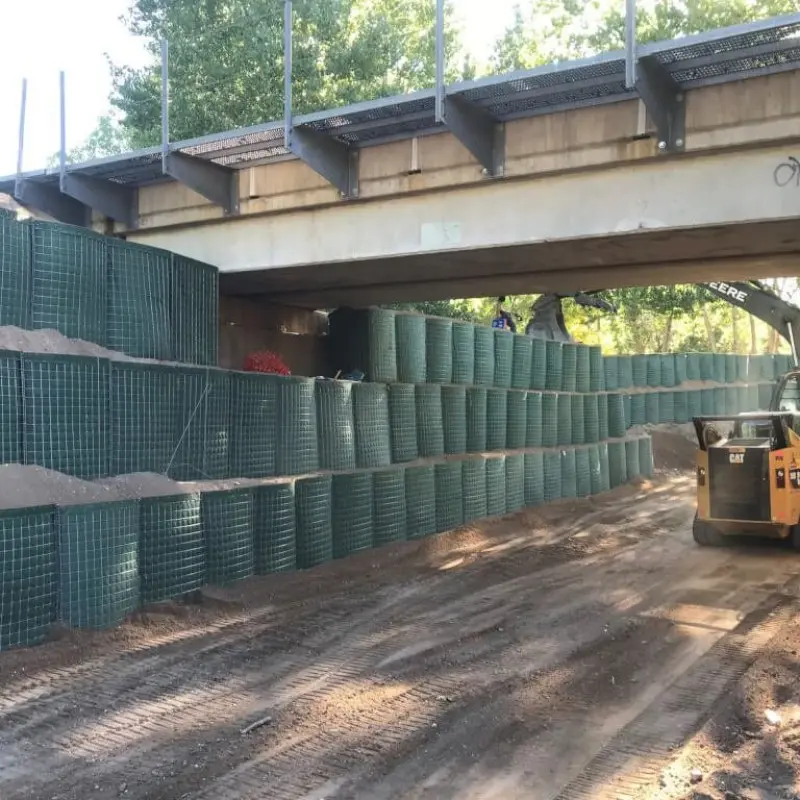

3. Flood Control Retaining Wall
Filled with sand or soil, military gabion boxes can serve as retaining walls to help control and prevent floodwaters.
4. Protection Engineering of Seaside Area
Military defensive walls are increasingly used along coastal areas as protective fences against erosion and tidal impacts.
5. Protecting Existing Structures
Gabion-based defensive structures can help safeguard existing buildings and infrastructure from flood damage.
Gabion-based defensive structures can help safeguard existing buildings and infrastructure from flood damage.
6. Coastal Erosion Control
Gabion walls and barriers are effective in mitigating coastal erosion, stabilizing shorelines, and preserving land.
Gabion walls and barriers are effective in mitigating coastal erosion, stabilizing shorelines, and preserving land.
The Advantages of Welded Defensive Barrier
1. Lifetime
Each unit is constructed from a welded wire mesh basket made of galvanized-coated, rust-resistant alloy materials. The wire mesh is designed to withstand environmental exposure, with a guaranteed service life of at least 5 years outdoors and 10 years when stored.
2. Collapsible
The mesh panels are connected with circular spring joints, allowing each panel to rotate 360° without obstruction. This design makes the units collapsible for space-saving during shipping and storage.
3. Strong Protection
Thicker mesh panels combined with reinforced geotextile create a robust protective wall, providing high durability and reliable structural strength.
Packaging and Delivery
