Wall Gabion

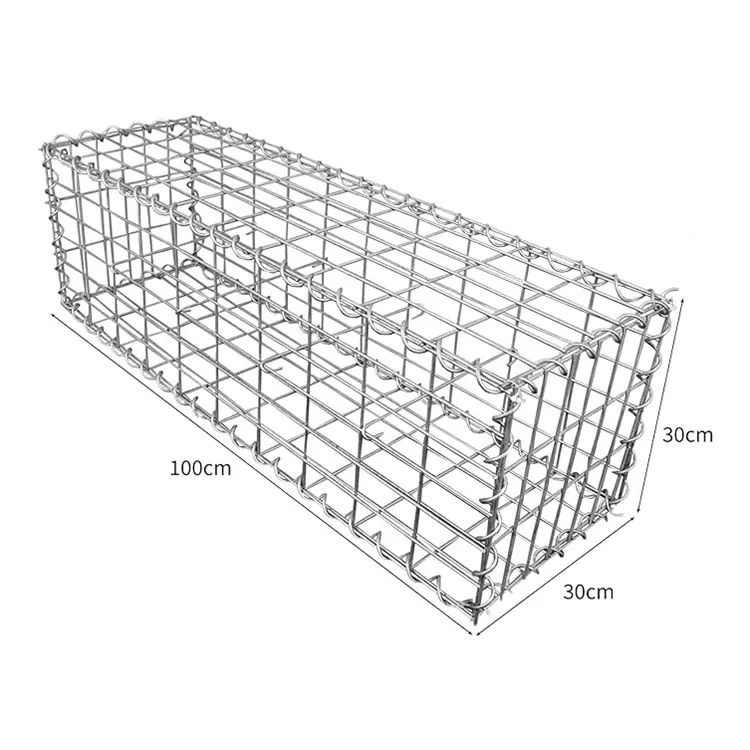

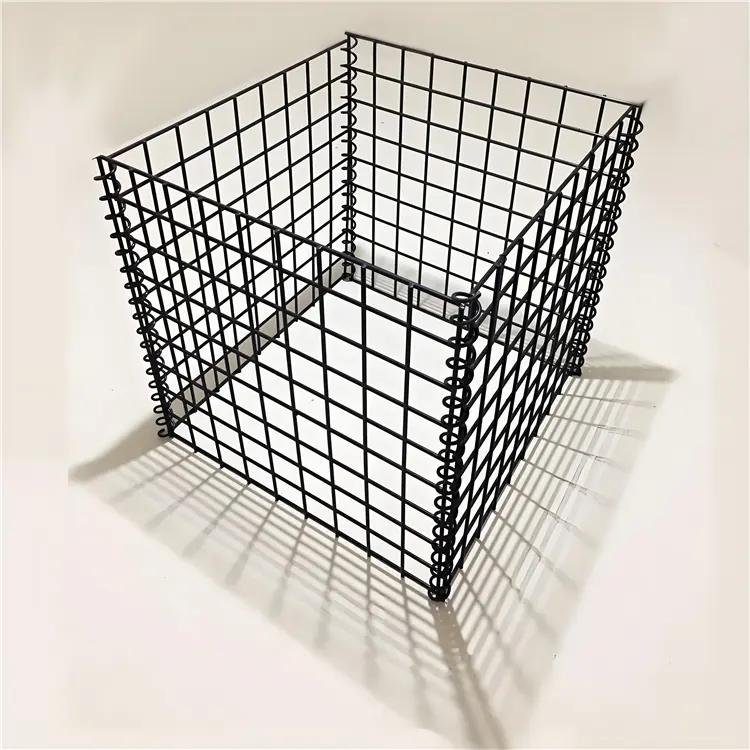

Welded Gabion Baskets Gabion Wall Gabion Basket Rock Cage Retaining Wall
Product Description
Welded gabion box is a mesh structure formed by assembling and compressing welded front and rear panels, base panels, and partitions with spiral binding wire, then packing them together with a mesh cover. High-quality low-carbon steel wire is formed through automated welding in accordance with BS1052:1986 standards. The surface is treated with electrogalvanizing, hot-dip galvanizing, and plastic coating. Each finished gabion mesh remains independent and offers corrosion resistance, permeability, and integrity.
products specification
| Gabion Size (m) | Mesh Opening(mm) | Wire Diameter(mm) | Surface Treatment | Tensile strength | Hot dip galvanized |
| 0.5x0.5x0.5 | Square mesh: | 3.0-6.0 mm | Hot dip galvanized Galfan coated (Zinc-5%Al Aluminum) (Zinc-10%Al Aluminum) PVC coated | 300-550Mpa | 40-60g/m2 220-300g/m2 (heavy galvanized) |
| 50x50 | |||||
| 70x70 | |||||
| 1x1×0.3 | 100x100 | ||||
| 1x0.8x0.3 | 150x150 | ||||
| 1x1x0.5 | Rectangle mesh: | ||||
| 1x1x1 | 30X50 | ||||
| 2x1x0.3 | 30X80 | ||||
| 2x1x0.5 | 50X80 | ||||
| 2x1x1 | 50X100 | ||||
| 3x1x1 | 50X150 | ||||
| 4x1x1 | 100X200 | ||||
| All sizes can customized according to your request. | |||||

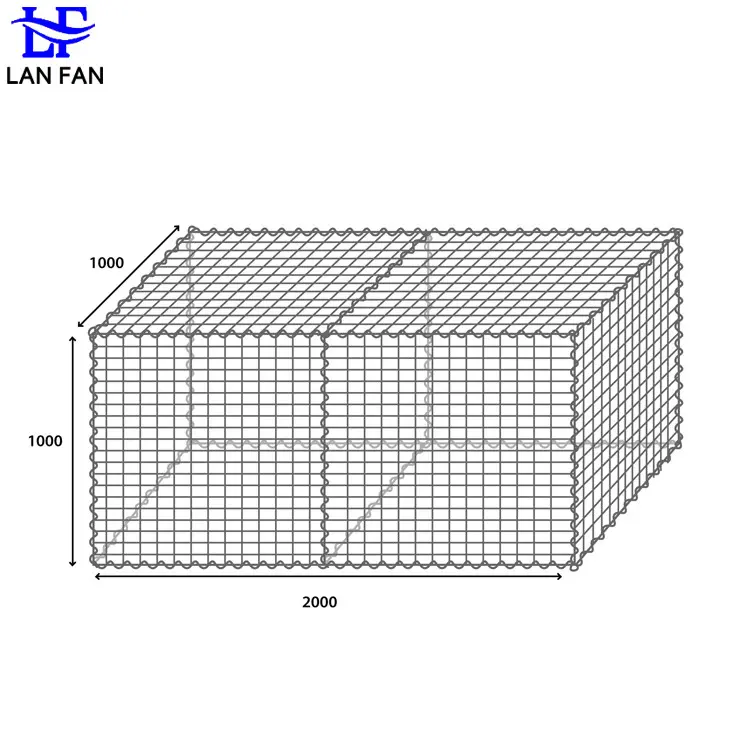

Gabion Box
Material: High quality low carbon steel wire
Gabion Baskets Application
This product is primarily used for park landscaping, building exterior wall decoration, and military protective facilities. Its smooth and uniform mesh surface, strong welds, and structural design maintain its flat surface after filling, making it suitable for slope protection and garden decoration.
Welded Gabion Baskets Delivery
Gabions are delivered in a collapsed and compressed structure. They are strapped together in a folded form on pallets for save spacing and easy transporting. The lacing wire is delivered in coils and spiral wires are bundled.
