3D Fence Panels
Square Post Fence
Product description
3D fences are welded from high-quality steel wire. Because they have two to four curved surfaces, they are also called curved mesh. These triangular curved surfaces provide greater strength than standard welded mesh. 3D fences can be connected to various posts, such as peach-shaped, square, rectangular, and round. This combination is known as a 3D safety fence. 3D safety fences are primarily used to protect residential areas, commercial areas, warehouses, highways, and airport service areas. They are durable, adaptable to any terrain, and easy to install. 3D fence panels feature a more aesthetically pleasing shape, and the curved design provides increased strength.
Specifications
Material: High-quality galvanized wire or mild steel wire
Wire diameter: 3mm-6mm
Mesh size: 50mm x 100mm, 55mm x 100mm, 50mm x 200mm, 55mm x 200mm, etc.
Length: 2.5m or 3.0m
Height: 0.5m-4.0m, depending on your needs.
Surface treatment: Hot-dip galvanizing, galvanized followed by PVC coating, or galvanized followed by powder coating
| Welded Security Fence(3D) | |||||
| Mesh Dimension(mm) | Wire Diameter(mm) | Fence Height(mm) | Curve Quantity | Fence Width | Post |
| 50*100 | 4mm/5mm | 2000mm | 1-1.3M 2 curves | 2000mm-3000mm | Size OD: 60*60mm or 60×80mm Thickness: 1.2mm or 1.5mm Length: 2.2m or 2.5m |
| 50*150 | 4mm/5mm | 2000mm | 1.6-1.9M 3 curves | 2000mm-3000mm | |
| 50*200 | 4mm/5mm | 2000mm | 1.9-2.1 3 curves | 2000mm-3000mm | |
| 50*200 | 4mm/5mm | 2000mm | 2.1-2.4 4 curves | 2000mm-3000mm | |
| 75x150mm | 4mm/5mm | 2000mm | 1.9-2.1 3 curves | 2000mm-3000mm | |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||
| Color available: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color customized | |||||
| Note:The fence can be customized according to your required if above specification is not satisfied with you. | |||||
Fence Application
Residential Areas
Commercial Properties
Public Buildings and Parks
products Features
• High level of rigidity and high anti-corrosion, anti-aging, weather-proof. All series of fences produced conform to the CE standard certification of the Italian inspection agency.
• We can offer Welded Wire Mesh Panel Fence free Design Drawing, supply samples for FREE, Efficient and fast installation and quick to transport. Just inserting hanger design make the post and panels a perfect fixed unit. No extra parts are needed, it is connected with buttons pushing installation, easy and convenient.

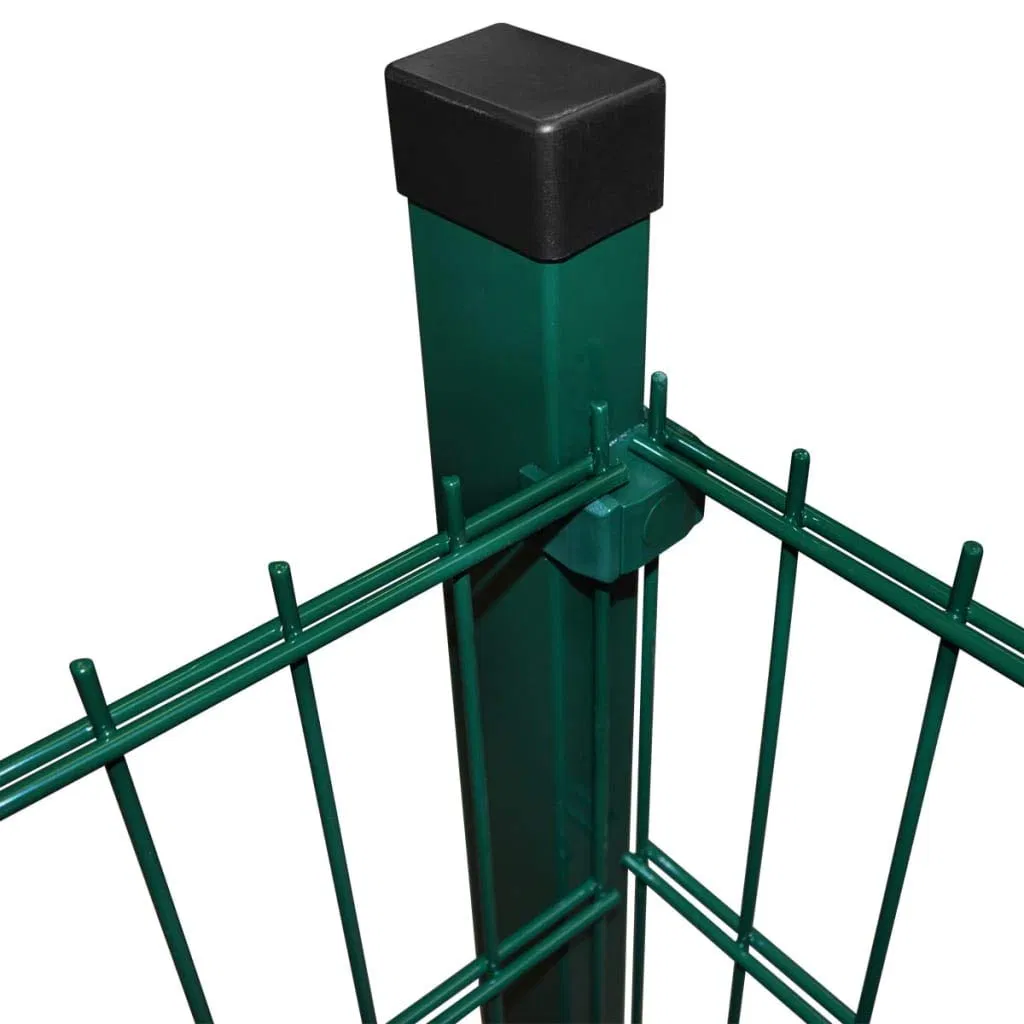

• The whole set 3D security fence consists of high-quality panels available in various heights and high-strength steel posts. Fence panel will be fixed to the post by suitable clips and screws according to various post type.
• Long service life more than 30 Years,super durable powder coated security fence assures a long service life for this fence system. This coating is applied for hot dipped galvanization to ensure total protection of panels and posts.
Surface Treatment
Hot dipped galvanized welded mesh + powder coating & PVC coated
Q&A
1. Is your fence sample free?
Yes, we can provide free sample to customer for checking its quality.
2. How many days will the sample fence be finished?
Normally our fence samples will be sent immediately by express in 2~3 days if the goods are in stock.
3. How long does it take you to get fence mass production?
Normally within 20-25 days according to your specific orders quantities.
4. Are you a manufacture?
As multi-speciality factory, We are a leading professional wire mesh specializing wire mesh fence which is verified by well-known testing institutions INTERTEK and alibaba. We currently offer chain link fence, gabion(Welded Gabion/Hexagonal Gabion, wall spike, temporary fence, barbed wires, razor wires1000+ metal wire mesh products, product customization according to customer requirements such as wire diameter openings and other specification, we have reliable shipping agent and provide you reasonable arrangement for delivery, moreover our professional installation team will provide you safe and easy installation assistance to make sure your construction plan complete as scheduled.
5. Is customization available?
Yes, we can OEM according to your detailed request, and we can supply fence drawings as your design. with high strength and good aesthetic effect, we will offer you the best fencing solution.
6. Does your wire mesh products have quality assurance?
Our factory has passed the ISO 9001:2000 quality control, and all series of fences produced conform to the CE standard certification of the Italian inspection agency.
