Security Barrier Bastion with Gabion Bags Defensive Barriers for Protection

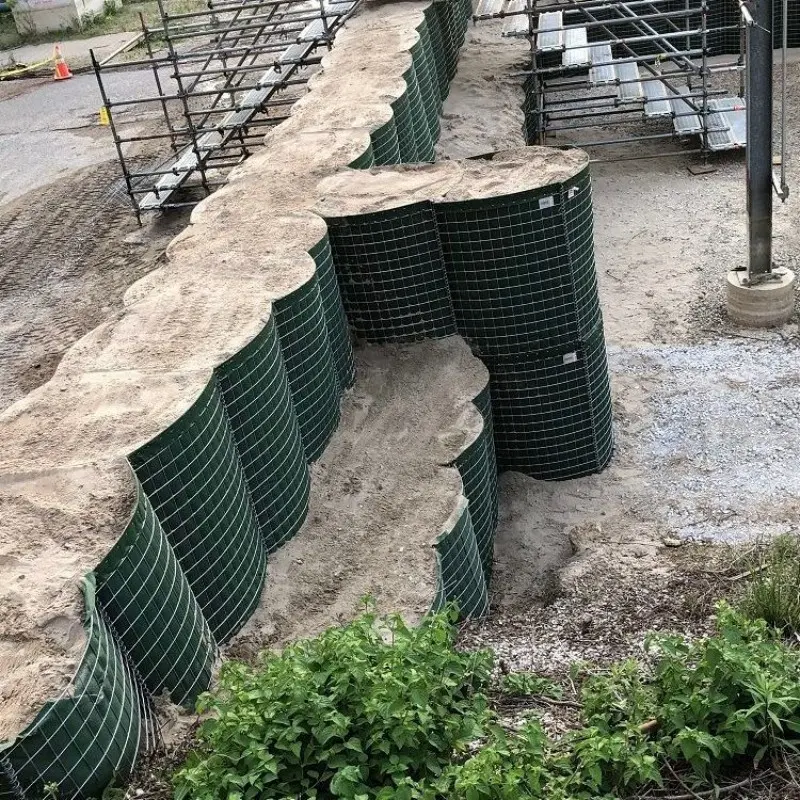

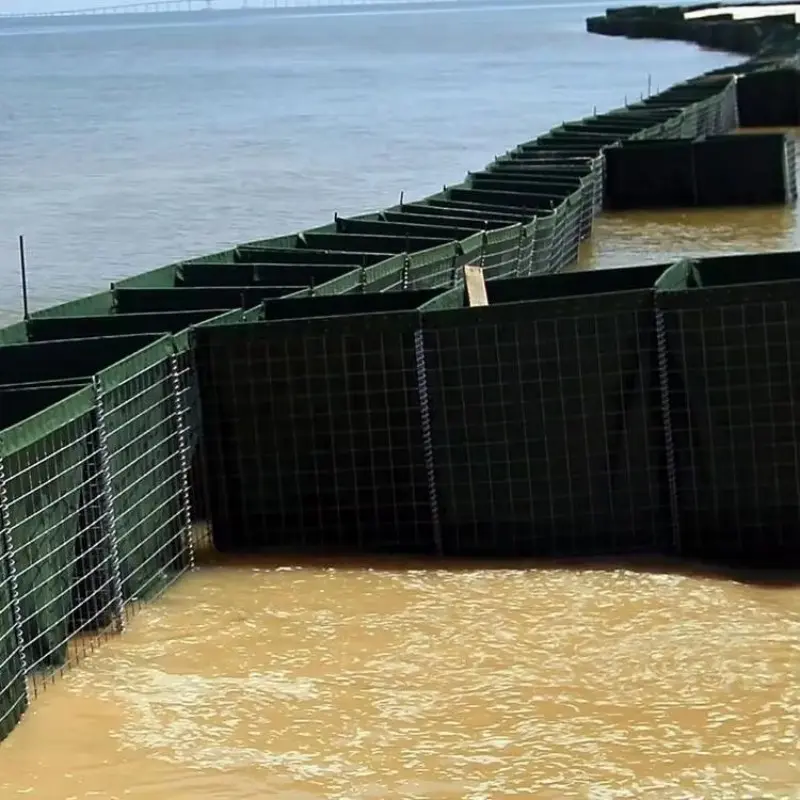

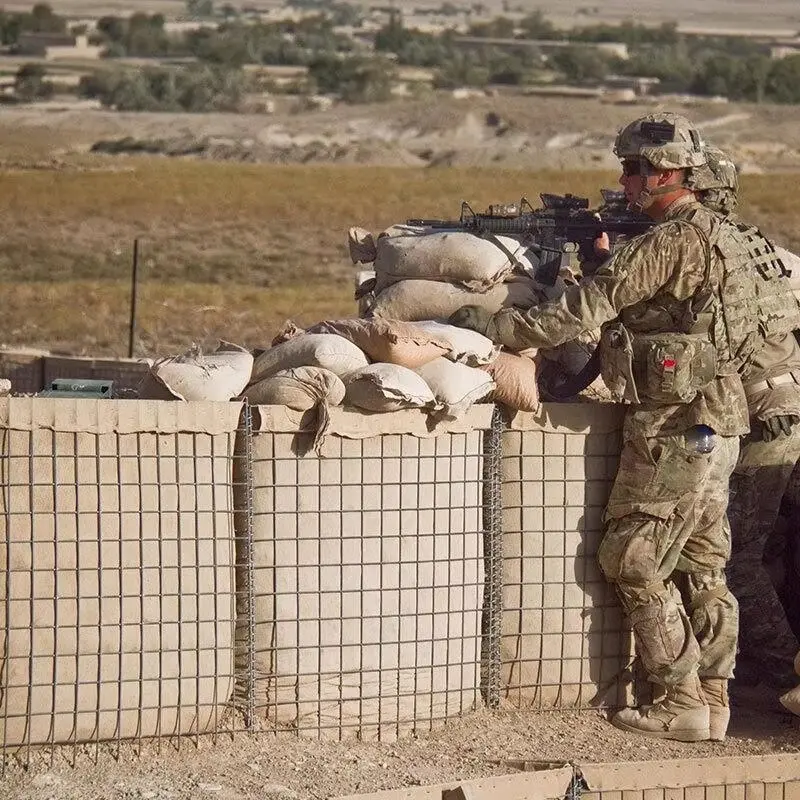

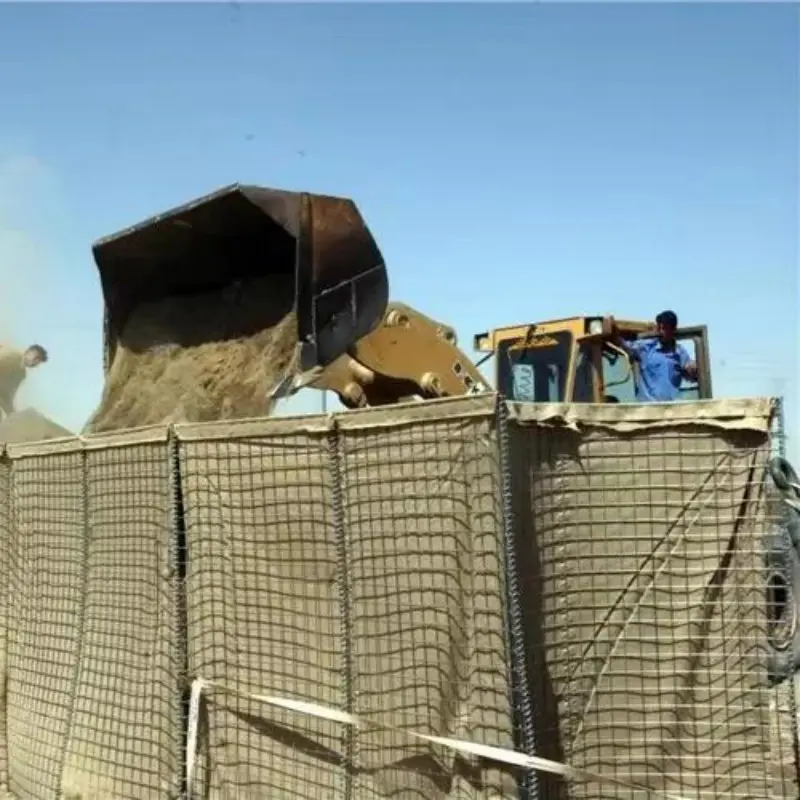

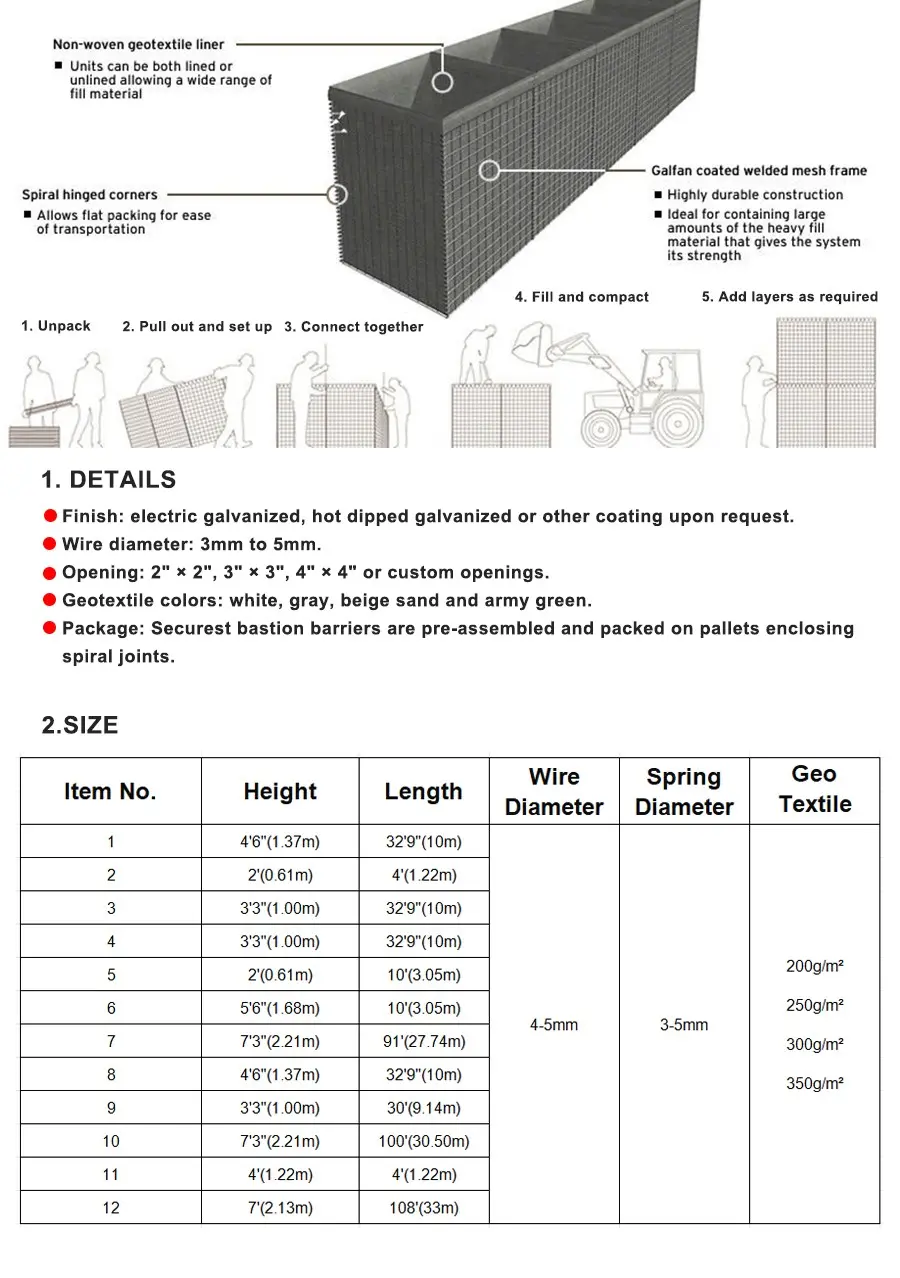

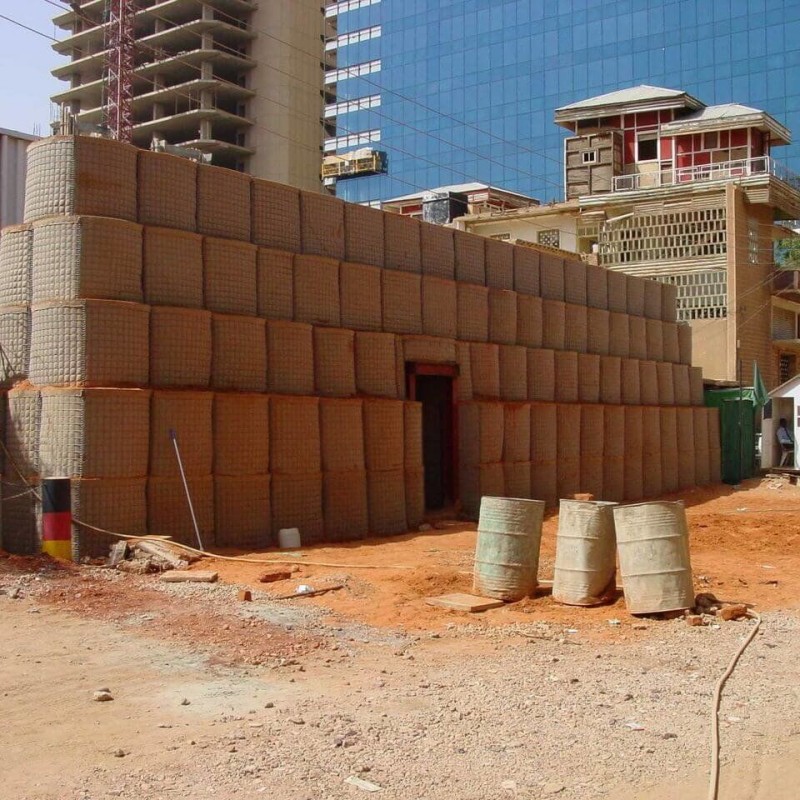

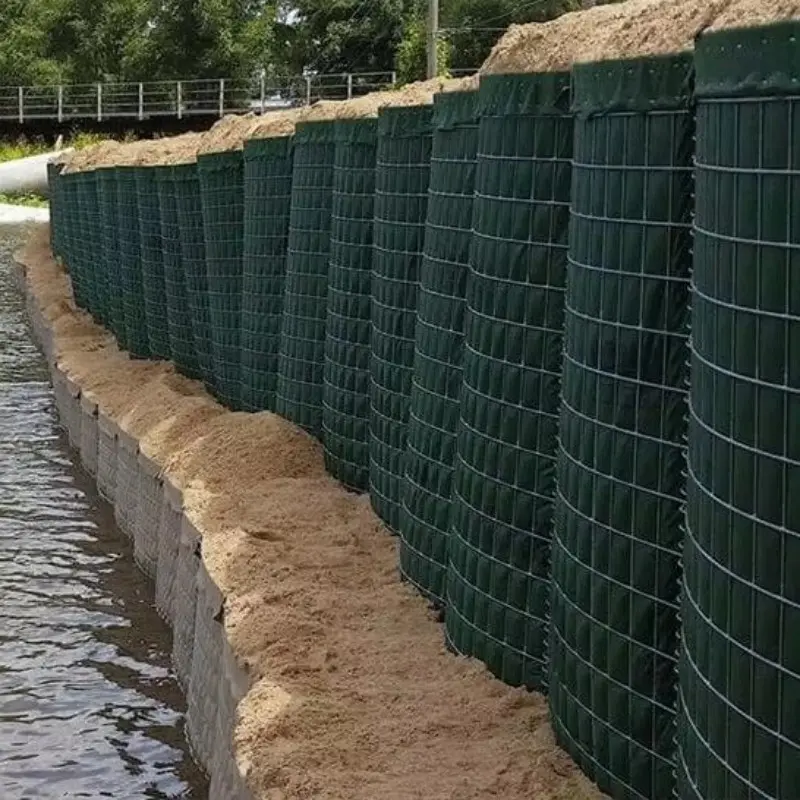

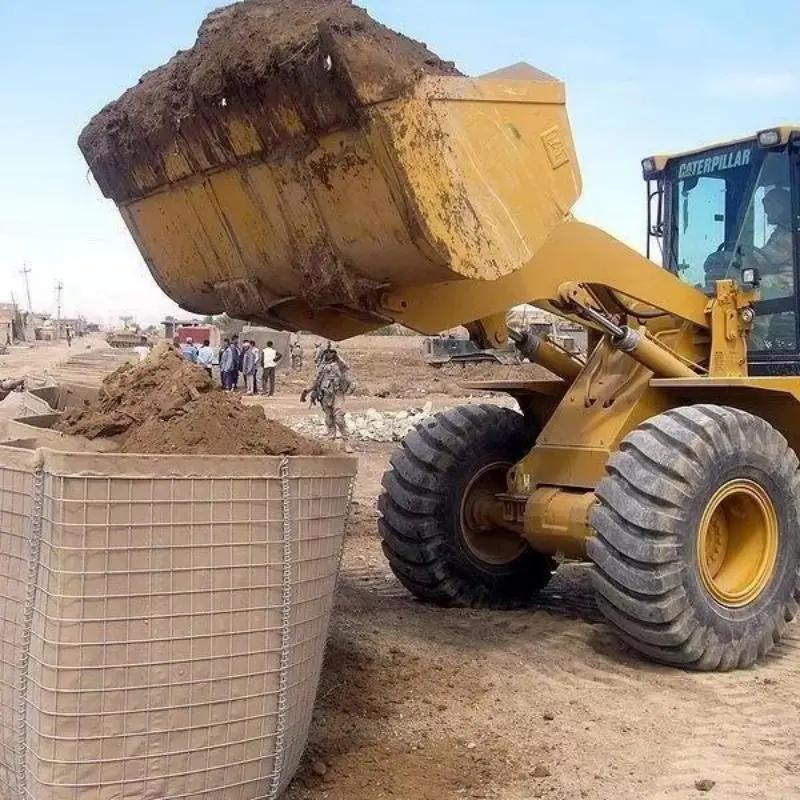

The defensive barrier is a foldable metal mesh box composed of welded gabion mesh and geotextile, primarily used for military and industrial protection. Its core function is to form a temporary protective structure by filling it with materials such as sand, rocks, and other materials. This effectively limits the destructive range of the explosion shock wave, minimizing casualties and property losses. Woven from high-carbon or low-carbon steel wire (Q195/Q235), it has a mesh size of 76.2 x 76.2 mm and features surface treatments such as hot-dip galvanizing, electroplating, or Galfan wire, providing high strength, corrosion resistance, and weather resistance. Its foldable packaging facilitates transportation and allows for rapid deployment and recovery. It can be filled with sand, rocks, or pebbles, making it particularly suitable for areas where stone is scarce. Lengths range from 1.06 m to 30.5 m, heights from 0.61 m to 33 m, and colors include beige and military green. It is suitable for military bases, combat shelters, separating hazardous areas in industrial plants, flood control embankment reinforcement, river management, and coastal protection.

The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.

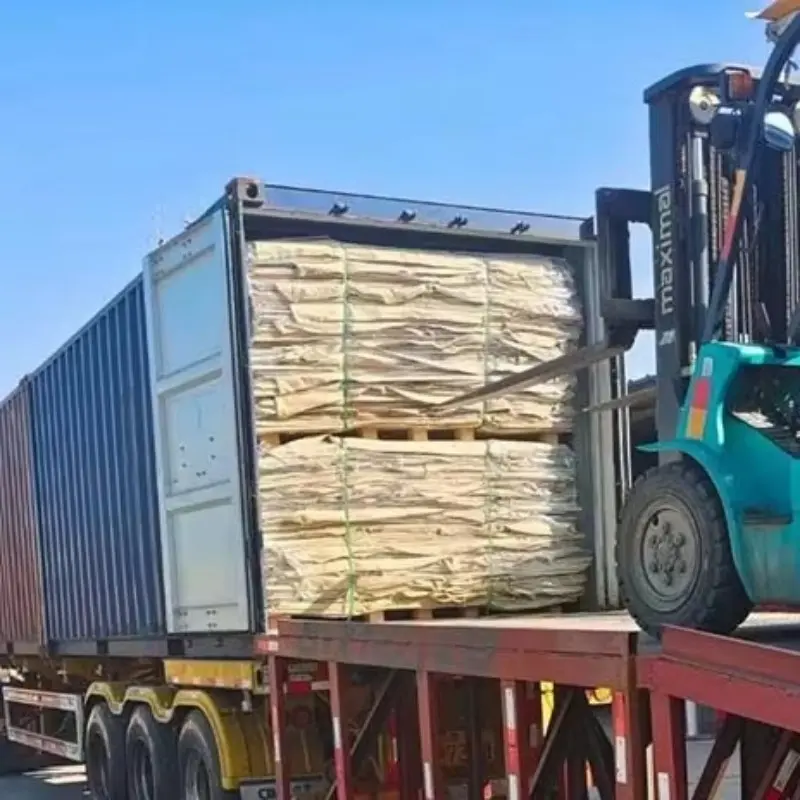

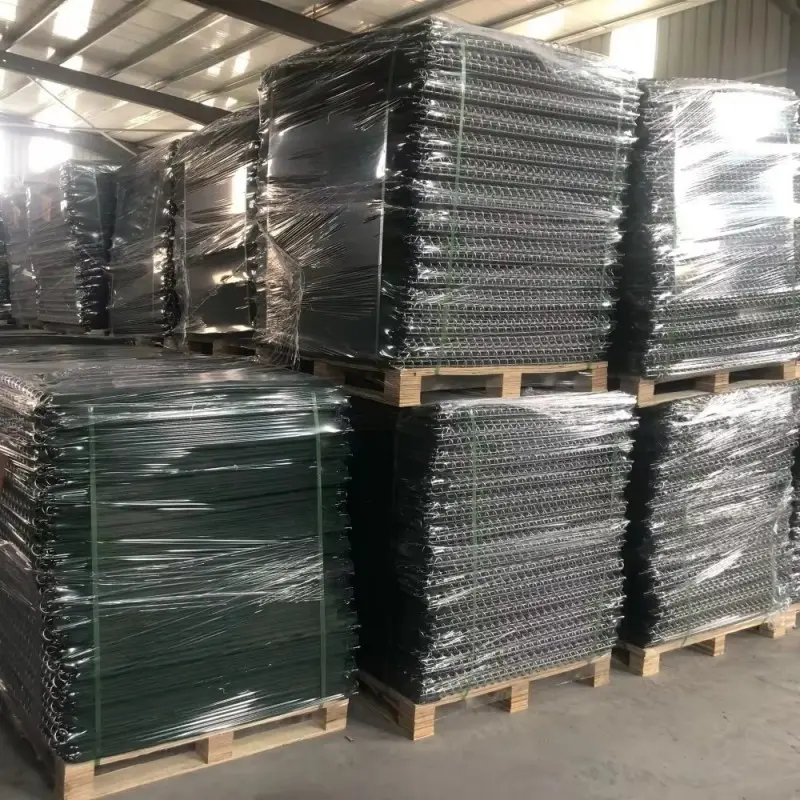

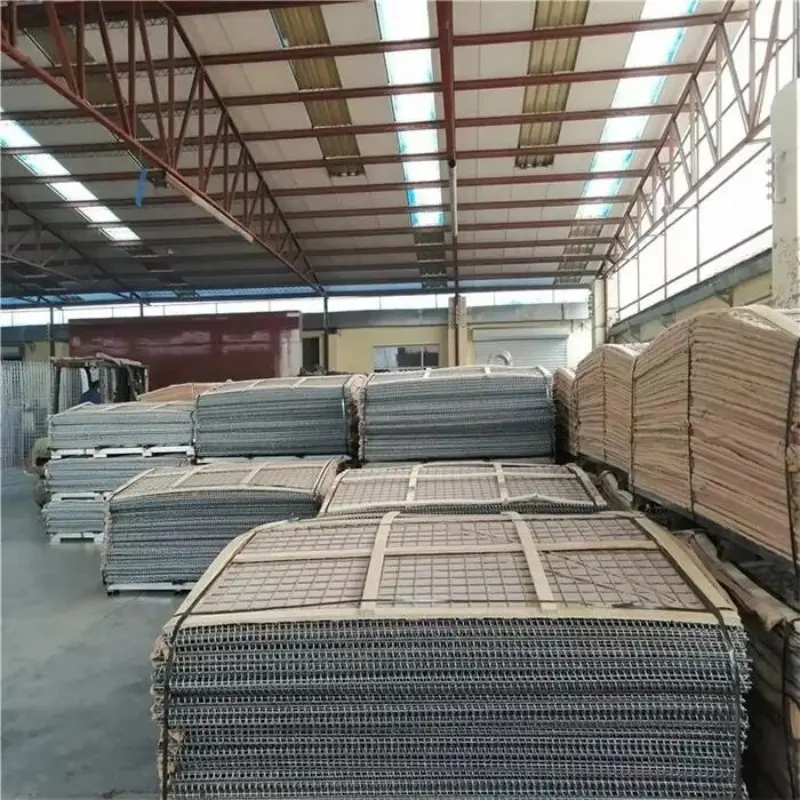

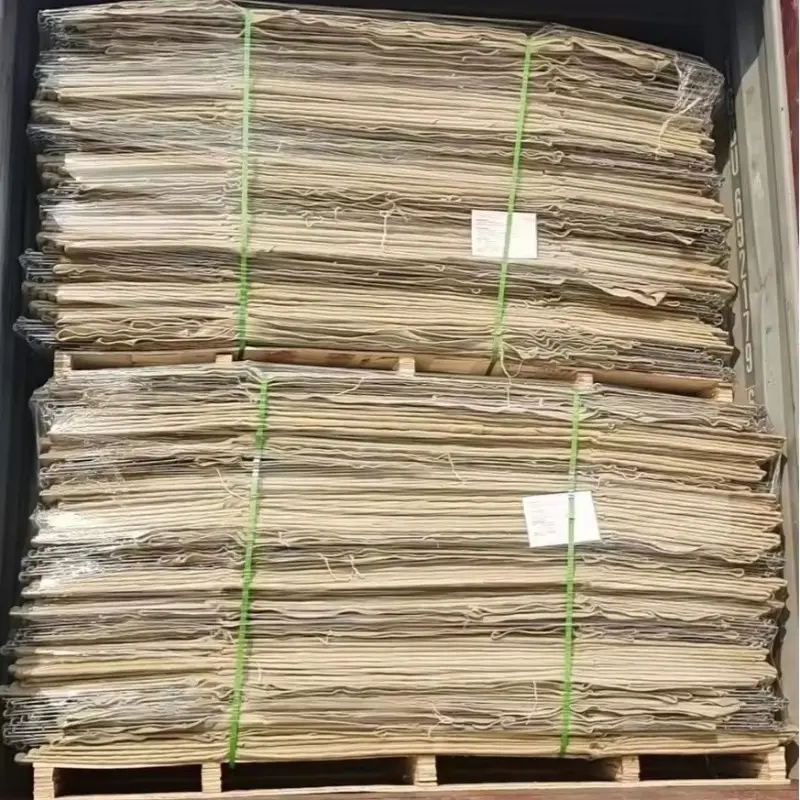

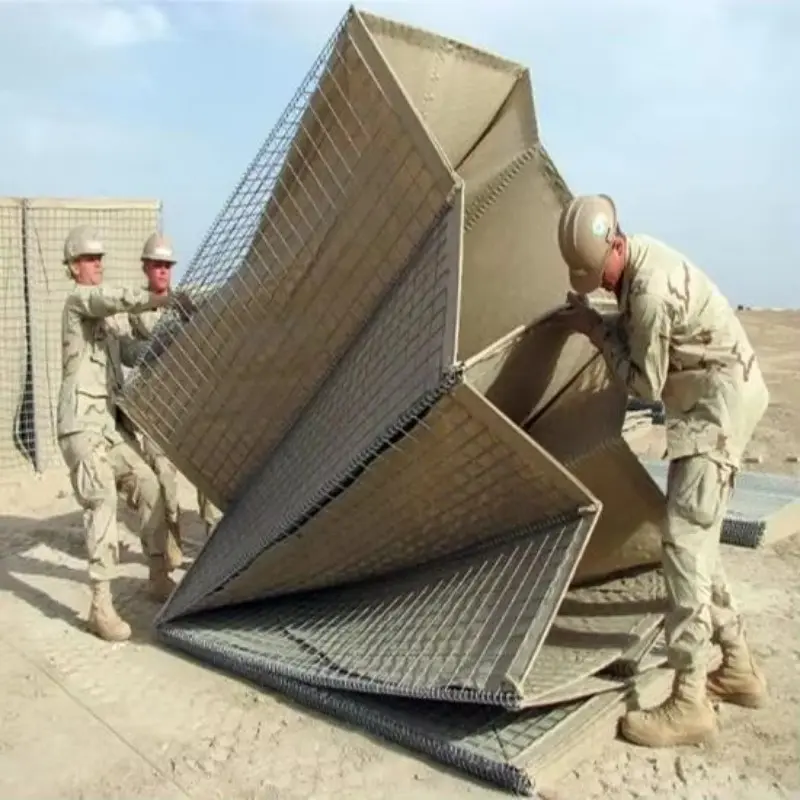

Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.

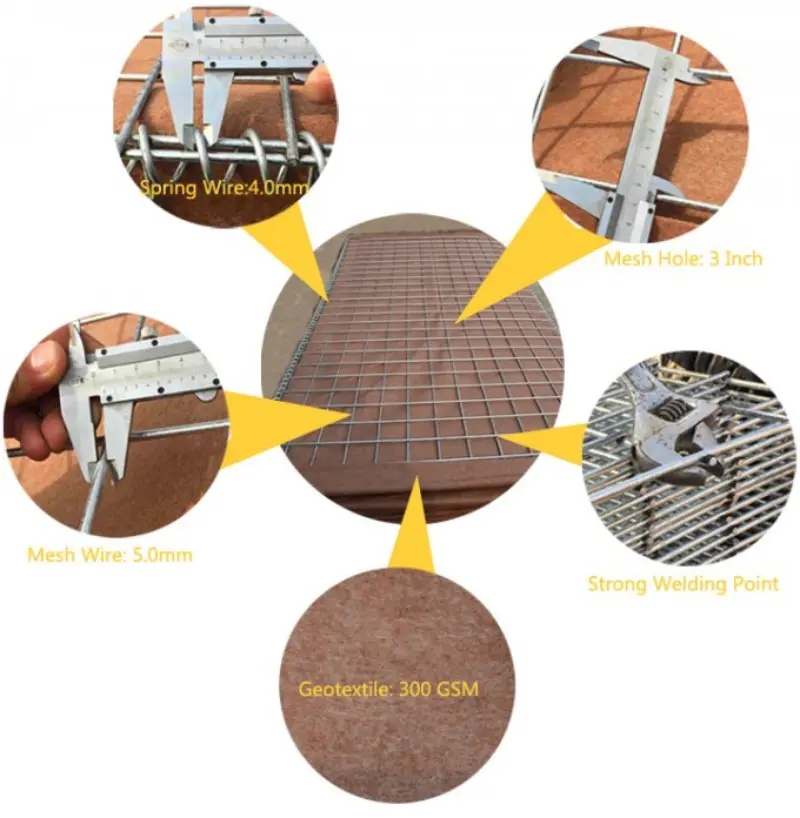

Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
