3D Fence Panels
Peach Post Fence
Product description
Fence specifications: Wire diameter: 3.5mm; Panel size: 2m*2.4m; Mesh size: 50*200mm; Fence height: 2m; Fence spacing: 2.4m. Overall color: dark green. Diagonal support: 2 per 2m.
Post specifications: Size: 7cm*10cm, 7cm*15cm Wall thickness: 0.8mm-2mm

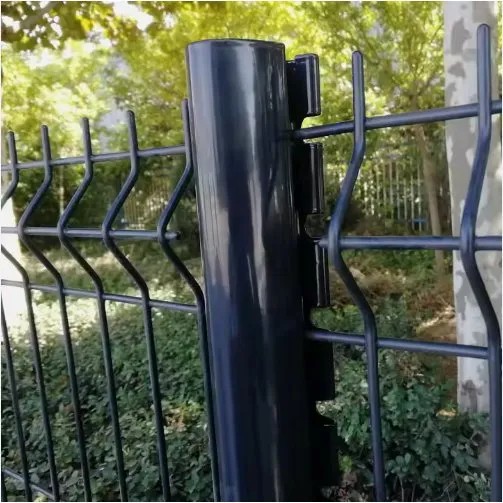

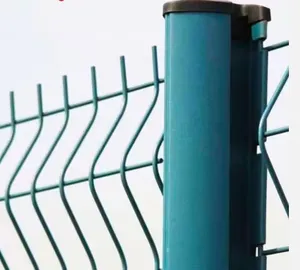

The characteristics of the peach-shaped 3d fences are that the bent fence mesh is connected with the peach-shaped post. It’s highly decorative, beautiful, strong and anti-theft. The peach-shaped post has a regular semi-elliptical shape, which resembles a peach, so it is called a peach-shaped post.
Post specifications: Size: 7cm*10cm, 7cm*15cm Wall thickness: 0.8mm-2mm
The characteristics of the peach-shaped 3d fences are that the bent fence mesh is connected with the peach-shaped post. It’s highly decorative, beautiful, strong and anti-theft. The peach-shaped post has a regular semi-elliptical shape, which resembles a peach, so it is called a peach-shaped post.
Structural description

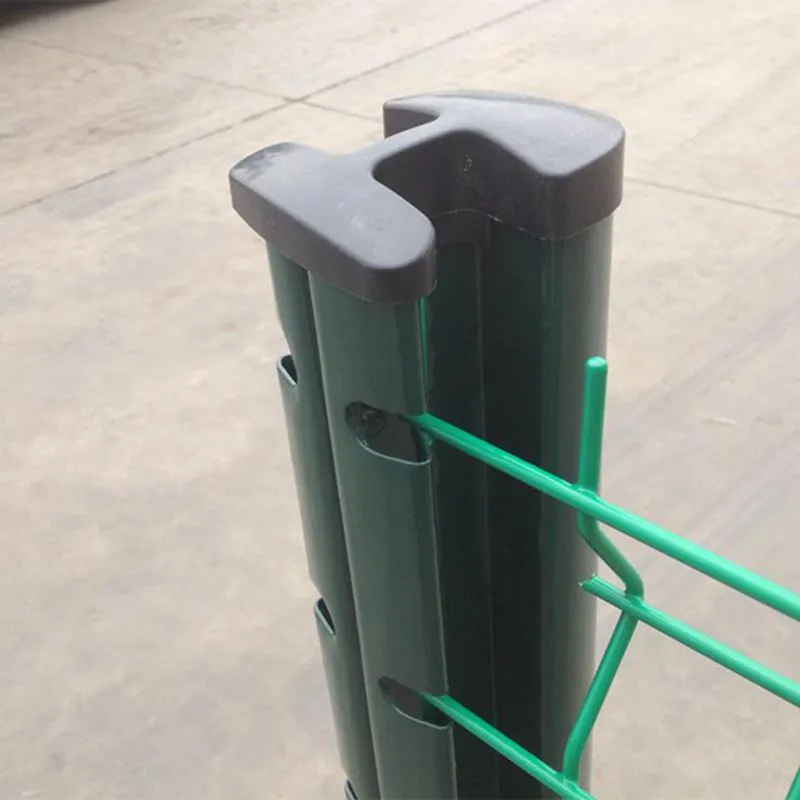

The typical thickness of the peach-shaped 3d fence is 1-1.2mm, formed by cold pressing and bending. The outer side of the post is elliptical, while the inner two panels, after joining, are bent outward into a U-shape, forming the hook portion. To facilitate the connection between the peach-shaped post and the mesh, the inner side of the post is equipped with multiple hook notches evenly distributed along the length of the post, based on the mesh size. The outer edge of the hook U is tangent to the straight edge of the outer elliptical post, effectively preventing it from being opened and ensuring the guardrails anti-theft safety.
There are three types of surface treatment for peach-shaped 3d fence mesh: galvanizing, plastic spraying and plastic dipping. Through these three surface treatments, the peach-shaped 3d fence panel is more beautiful and generous, with a certain decorative effect. More importantly, it extends the service life of the fence and ensures that it will not decay for 10 years.
There are three types of surface treatment for peach-shaped 3d fence mesh: galvanizing, plastic spraying and plastic dipping. Through these three surface treatments, the peach-shaped 3d fence panel is more beautiful and generous, with a certain decorative effect. More importantly, it extends the service life of the fence and ensures that it will not decay for 10 years.
products specification
| Welded Security Fence(3D) | |||||
| Mesh Dimension(mm) | Wire Diameter(mm) | Fence Height(mm) | Curve Quantity | Fence Width | Post |
| 50*100 | 4mm/5mm | 2000mm | 1-1.3M 2 curves | 2000mm-3000mm | Size OD: 60*60mm or 60×80mm Thickness: 1.2mm or 1.5mm Length: 2.2m or 2.5m |
| 50*150 | 4mm/5mm | 2000mm | 1.6-1.9M 3 curves | 2000mm-3000mm | |
| 50*200 | 4mm/5mm | 2000mm | 1.9-2.1 3 curves | 2000mm-3000mm | |
| 50*200 | 4mm/5mm | 2000mm | 2.1-2.4 4 curves | 2000mm-3000mm | |
| 75x150mm | 4mm/5mm | 2000mm | 1.9-2.1 3 curves | 2000mm-3000mm | |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||
| Color available: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color customized | |||||
| Note:The fence can be customized according to your required if above specification is not satisfied with you. | |||||
Fence Application

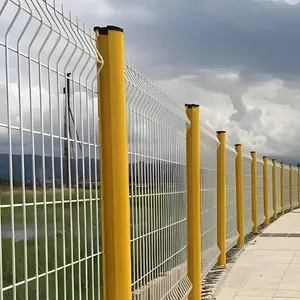

Peach-shaped 3D fences generally use peach-shaped posts, which are mainly used for isolation and protection of highways, villa communities, airports, public places, and scenic tourist areas.
products Features
• High level of rigidity and high anti-corrosion, anti-aging, weather-proof. All series of fences produced conform to the CE standard certification of the Italian inspection agency.
• We can offer Welded Wire Mesh Panel Fence free Design Drawing, supply samples for FREE, Efficient and fast installation and quick to transport. Just inserting hanger design make the post and panels a perfect fixed unit. No extra parts are needed, it is connected with buttons pushing installation, easy and convenient.
• The whole set 3D security fence consists of high-quality panels available in various heights and high-strength steel posts. Fence panel will be fixed to the post by suitable clips and screws according to various post type.
• Long service life more than 30 Years,super durable powder coated security fence assures a long service life for this fence system. This coating is applied for hot dipped galvanization to ensure total protection of panels and posts.
Surface Treatment
Hot dipped galvanized welded mesh + powder coating & PVC coated
Q&A
1. Is your fence sample free?
Yes, we can provide free sample to customer for checking its quality.
2. How many days will the sample fence be finished?
Normally our fence samples will be sent immediately by express in 2~3 days if the goods are in stock.
3. How long does it take you to get fence mass production?
Normally within 20-25 days according to your specific orders quantities.
4. Are you a manufacture?
As multi-speciality factory, We are a leading professional wire mesh specializing wire mesh fence which is verified by well-known testing institutions INTERTEK and alibaba. We currently offer chain link fence, gabion(Welded Gabion/Hexagonal Gabion, wall spike, temporary fence, barbed wires, razor wires1000+ metal wire mesh products, product customization according to customer requirements such as wire diameter openings and other specification, we have reliable shipping agent and provide you reasonable arrangement for delivery, moreover our professional installation team will provide you safe and easy installation assistance to make sure your construction plan complete as scheduled.
5. Is customization available?
Yes, we can OEM according to your detailed request, and we can supply fence drawings as your design. with high strength and good aesthetic effect, we will offer you the best fencing solution.
6. Does your wire mesh products have quality assurance?
Our factory has passed the ISO 9001:2000 quality control, and all series of fences produced conform to the CE standard certification of the Italian inspection agency.
