Slope Stabilization
Leading Provider of Overall Solutions for Flexible Slope Protection
products specification
| Material | High carbon steel wire. |
| Surface treatment | Hot dipped galvanized, zinc-aluminum coated. |
| Zinc thickness | No less than 150 g/m². |
| Wire diameter | 3 mm, 4 mm. |
| Mesh type | Rhomboid hole. |
| Mesh size | 65 mm inscribed circle diameter. |
| Tensile strength | Minimum 1770 MPa. |
| Braking load of single wire | 12.5 kN. |
| Mesh roll width | 1–3.5 m. |
| Mesh roll length | 10–30 m. |
| Fitting | Steel anchor, claw type spike plate, soil or rock nails, clips, sewing rope, boundary rope. (The steel anchor is made of deformed steel bar of 25 mm diameter) |
product description
Common types of active rockfall barrier are galvanized wire rope net, PVC coated wire rope net, spider spiral rope mesh and hexagonal wire mesh.

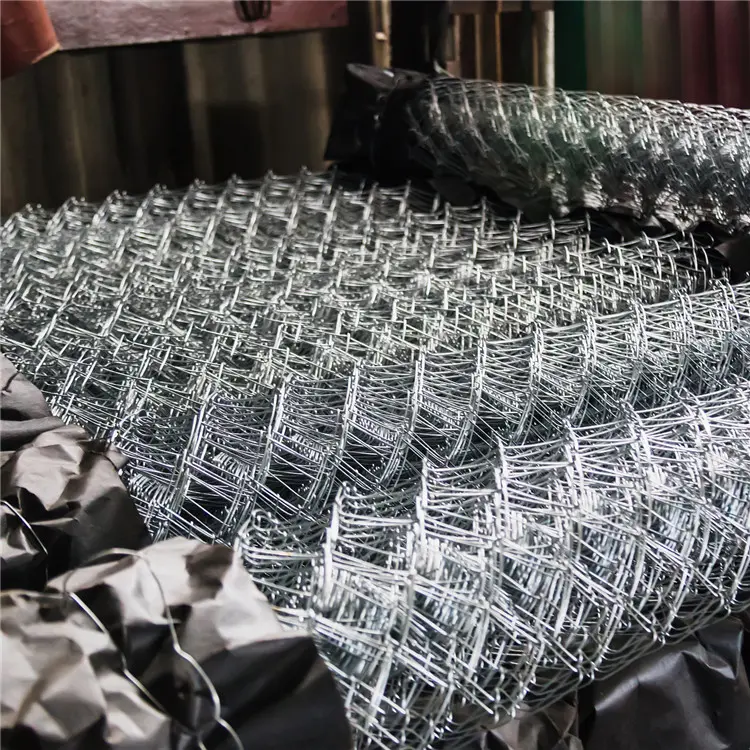

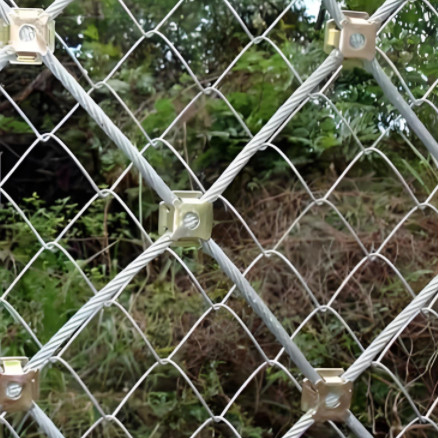

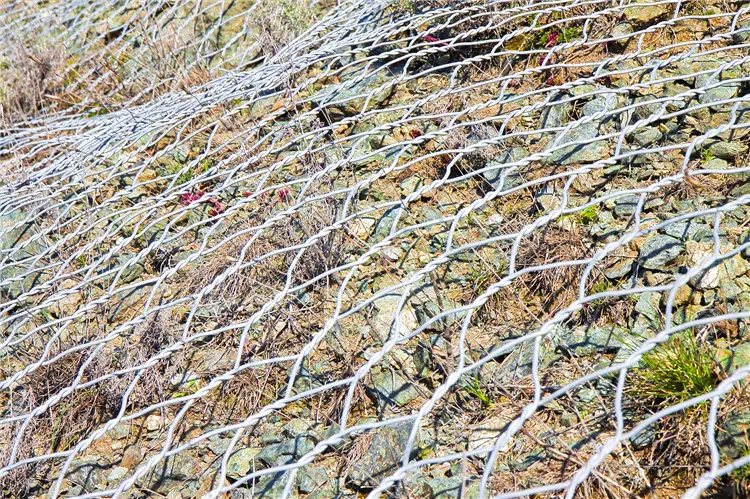

Galvanized wire rope net. It is made of hot dipped galvanized steel wire rope, chain link meshes and other rockfall barrier accessories. It is the most commonly used type of active rockfall barriers. The hot dipped galvanized surface treatment supplies excellent corrosion and rust resistance performance for durable and long service life.

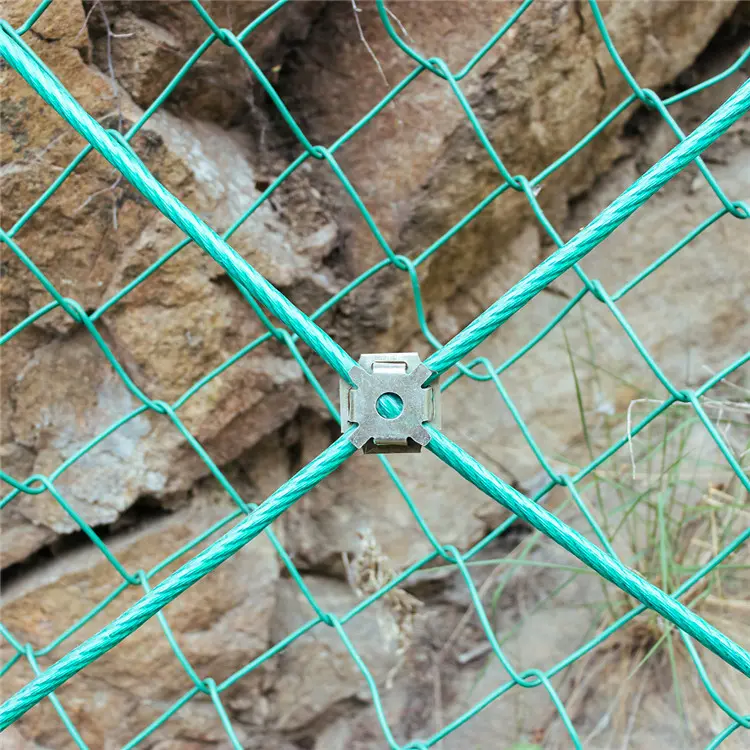

PVC coated wire rope net. It has the same function with the galvanized wire rope net. But the PVC coating, which can be green or transparent can supply further corrosion and rust resistance. Additional, it can blend with surrounding environments and decorate the mountains or slopes.
Spider spiral rope mesh system. It is double layer structure of rockfall barrier system, which including the spider spiral rope mesh and chain link mesh. The spider spiral rope mesh is made of three strands of high carbon steel wires, which supplies high strength for the rockfall barrier system.

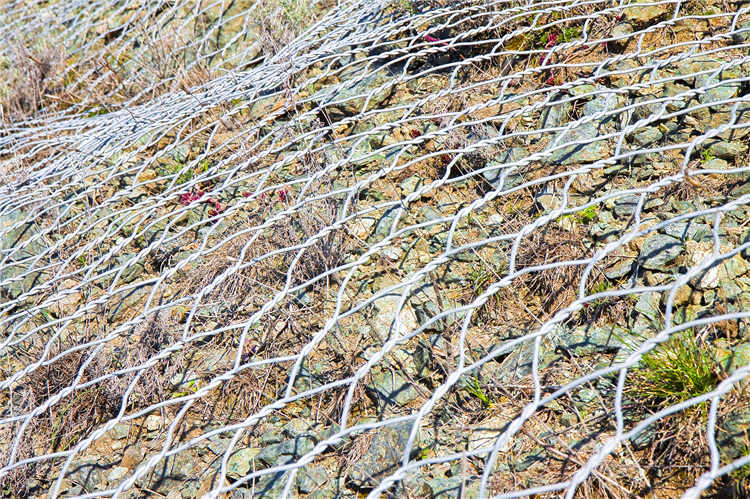

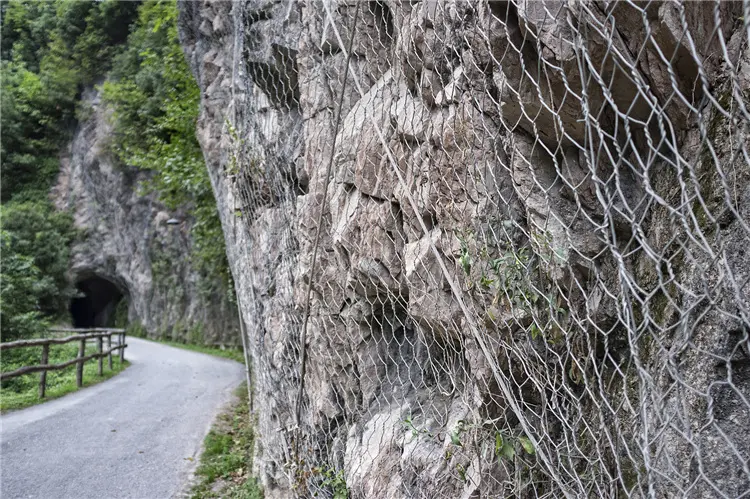

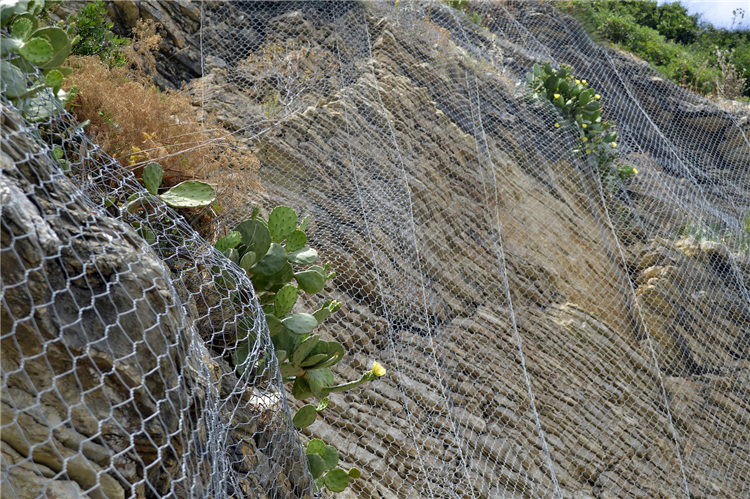

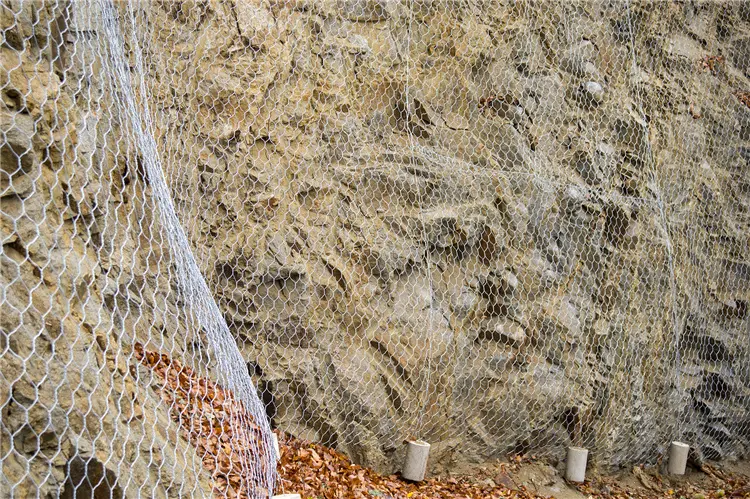

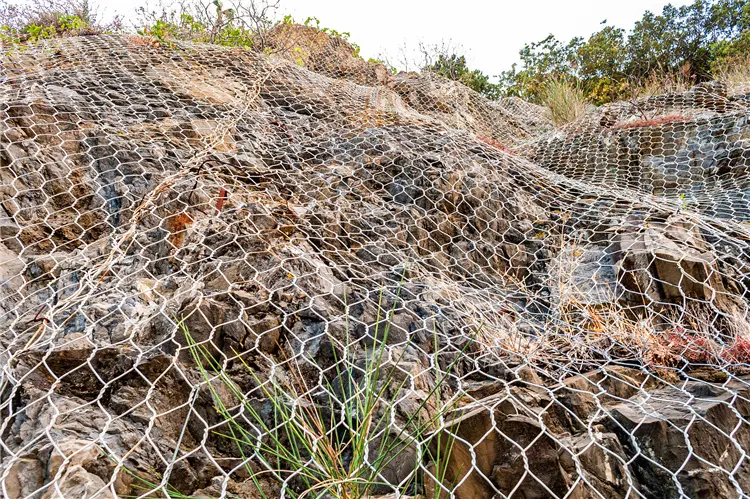

Hexagonal wire mesh. Hexagonal wire mesh is made of hot dipped galvanized wire, it is widely used in the mountains to protect the mountains. Additional, the hexagonal wire mesh can be sued for earth spraying to let plants growing between the gaps for environmental protection.
Features
• High tensile strength.
• Rigid and solid.
• Corrosion resistance.
• Durable and long service life.
• Double layers protection for the slope.
• Low maintenance cost.
• Environmental friendly.

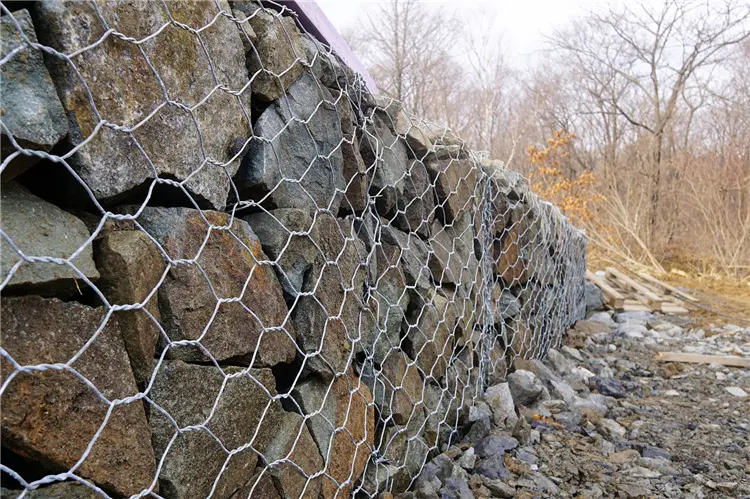

Active protection meshes and gabion wire meshes are the top 2 popular products for civil engineering projects.
Application
• Rock slopes
• Riverbank stabilization
• Rockburst conditions
• Squeezing ground
• Water and soil loss fields
