Field Fence
High Tensile Galvanized Non Climb Square Knot Horse Fence Field Fence
Product Description
The field fences are livestock fencing facilities made primarily of galvanized steel wire, mechanically woven using a loop-type loop. They also provide ecological protection and are widely used in pastoral areas of America, Europe, and China. Their structure utilizes warp and weft steel wire to form the mesh, supplemented by compression wave technology to enhance deformation buffering. High-zinc-coated steel wire (e.g., 230 g/m2 zinc coating) is used in humid regions to improve corrosion resistance. In rainy mountainous areas, they are often covered with sun-resistant nylon woven fabric to prevent sediment loss.
Application

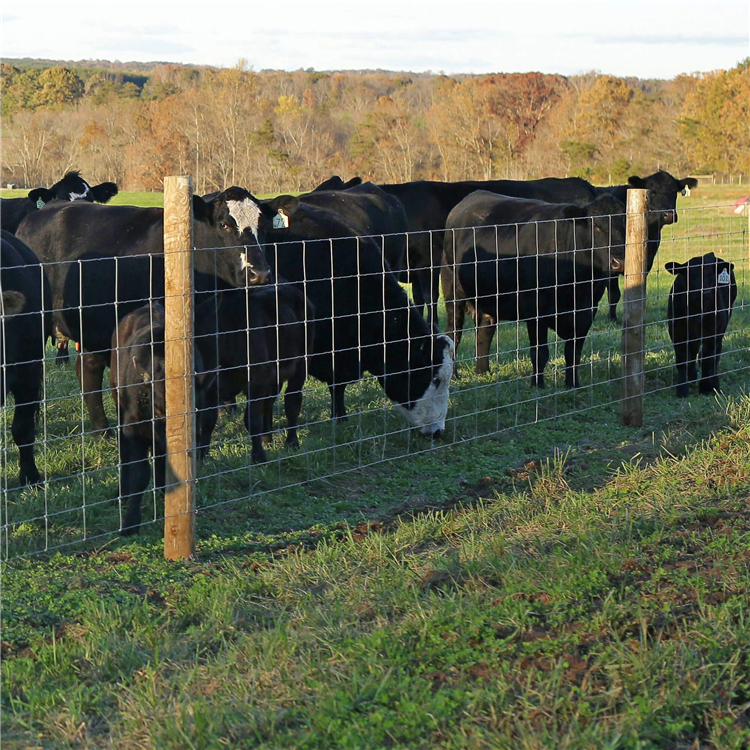

Main uses include demarcating pasture boundaries, implementing rotational grazing zones, and preventing landslides. This method saves significant labor and reduces worker intensity. During winding, 2-3 tons of mechanical pressure are applied to ensure a smooth, sturdy, and precise mesh, resulting in uniform mesh and strong integrity. In particular, the advanced compression wave process creates a 12mm deep and 40mm wide bend between each mesh. This bend, commonly known as the "wave," further flattens the mesh surface. This mitigates thermal expansion and contraction in areas with drastic winter and summer climate fluctuations, and prevents the mesh from automatically returning to its original position in the event of a collision with an animal, increasing its cushioning capacity.
products specification
| FIELD CATTLE FENCE | |||
| Mesh sizes | G.W.(KG) | Wire diameter(mm) | |
| 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.0/2.5mm |
| 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.0/2.5mm |
| 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.0/2.5mm |
| 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.0/2.5mm |
| 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.0/2.5mm |
| 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.0/2.5mm |
| 7/150/1245/50 | 102+114+127+140+152+0178+203+229 | 26 | 2.0/2.5mm |
| 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.0/2.5mm |
| 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.0/2.5mm |
| 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.0/2.5mm |
| DEER FENCE | |
| Vertical wire distance | 3", 4", 5", 6", 7" |
| Mesh width | 75mm, 150mm, 300mm, 450mm(3" , 6", 12", 18") |
| Wire diameter | 2.4mm-2.6mm |
| Knot wire | 2.0mm-2.24mm |
| Roll width | Any length ≤2.5m |
| Roll length | 50m, 100m ,200m |
Field Fence Advantage
Small openings on the bottom to keep small wild animals out
Wide openings on the top to keep large wild animals away and livestock confined
Resistant to animal impacts
Extremely weather resistant
Easy to install and Long lasting
Fixed-knot, Extra and uniformly zinc coated

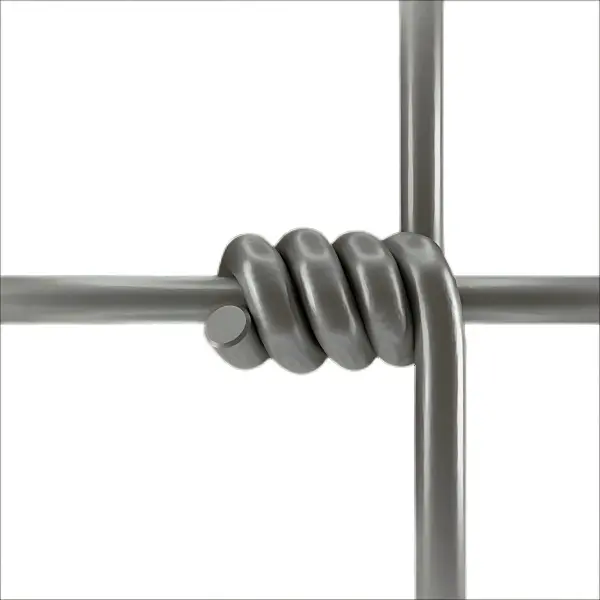

Ranch Fence Knot
Widely used for the decoration for the residential area or the road beautiful isolation and garden, feeding, Courtyard, lawn, hotel, supper market, place of entertainment and so on.
3D fence is used as decoration or protection for various facilities in industry, agriculture, Road and transport, etc.
Hinge Joint Knot
The hinge joint knot is composed of multiple, vertical wires that are wrapped around each horizontal wire. It makes a stronger fence than barbed wire, It's where the up-and-down wires gently hold onto the side-to-side wires at each crossing point. This kind of knot is really good at stopping accidents without hurting horses.this kind of knot is really good at stopping accidents without hurting horses.

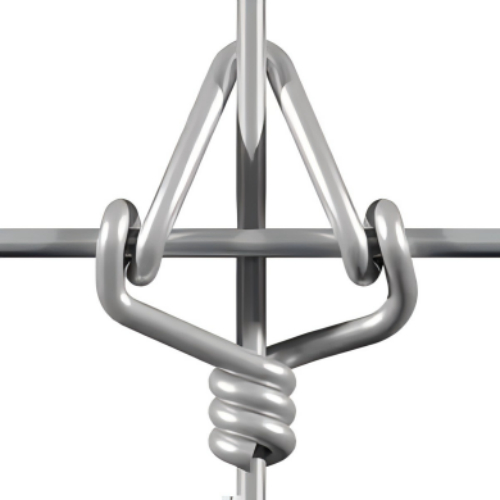

Fixed Knot
This knot uses an extra wire to tie the up-and-down wires with the side-to-side wires, making the fence even stronger. It's stronger than the square knot, which helps to keep animals from bumping into the fence and also holds up well against heavy snow. It's a really tough knot that keeps your animals safe and the fence strong.
