Defensive Barrier
Explosion Proof Cage Folding Metal Explosion-proof Wall Safety Defense Fortress Barrier Portable Shelter Metal Retaining Wall
Product Description

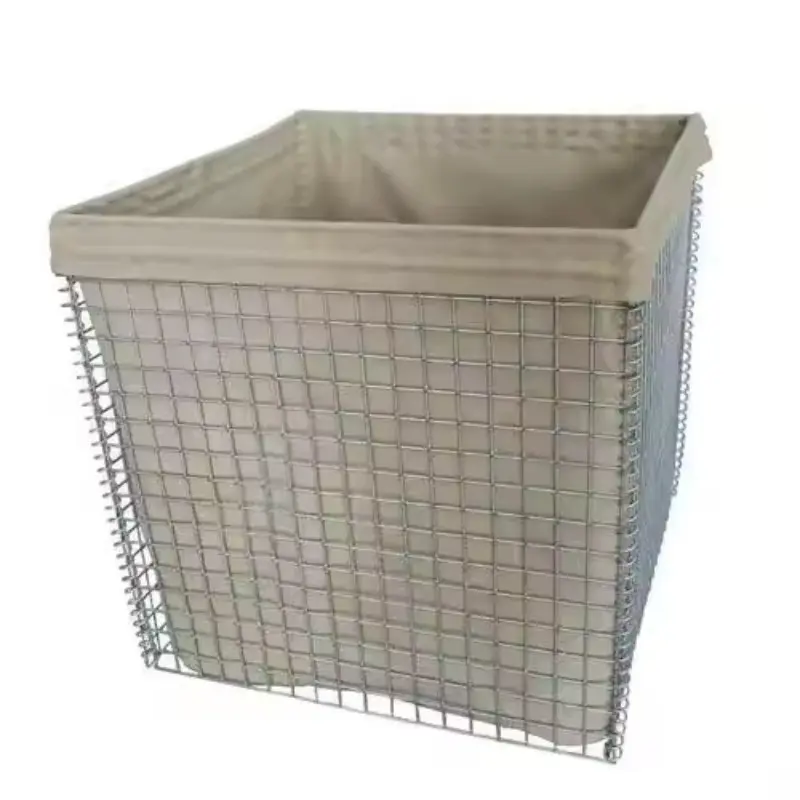

The mesh is internally lined with a non-woven geotextile to confine the filling material inside each cell. The lining is overlapped and attached to the top edge of the unit, while the lower part of the fabric is left loose in order to form a soil retention seal, once internally folded on site. The geotextile is specially designed to provide extended UV resistance compared to the standard non-woven geotextiles. Defensive Barrier are joined longitudinally, by using connecting pins to obtain the required length of the structure.
product details
|
Defense Barrier |
|
|
Product Name |
Defense Barrier |
|
Product Type |
Welded Mesh |
|
Material |
Galvanized Steel Wire or Galfan/zinc-5% Aluminum Wire |
|
Wire Diameter |
4.0, 5.0mm, Spring Wire Diameter: 4mm |
|
Geotextile |
250g-400g |
|
Geotextile colour |
Sand clolor, Brown, Gray,and Military Green. |
|
Mesh hole |
76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm |
|
Packing |
wrapped with shrink film or packed in pallet |
Product Specifications
The Application for Welded Gabion Barrier
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure, Shuxin products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Defensive Barriers can as the Dike against the Flood permanently or Semi-Permanently.

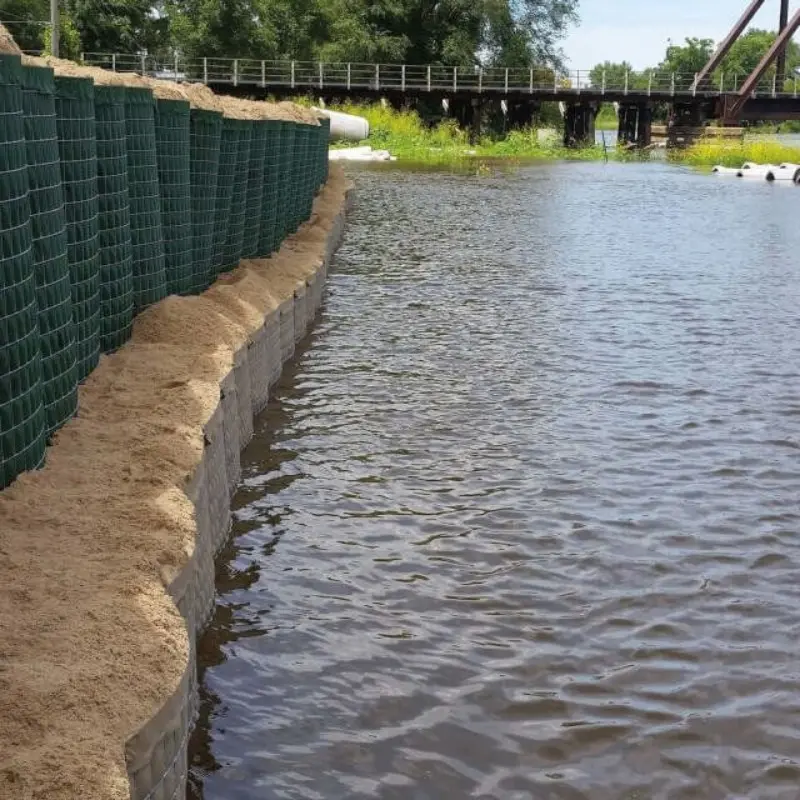

3. Flood Control Retaining Wall
Wiht sand and earth in it, Military Gabion Box can as a retaining Wall to against the flood.

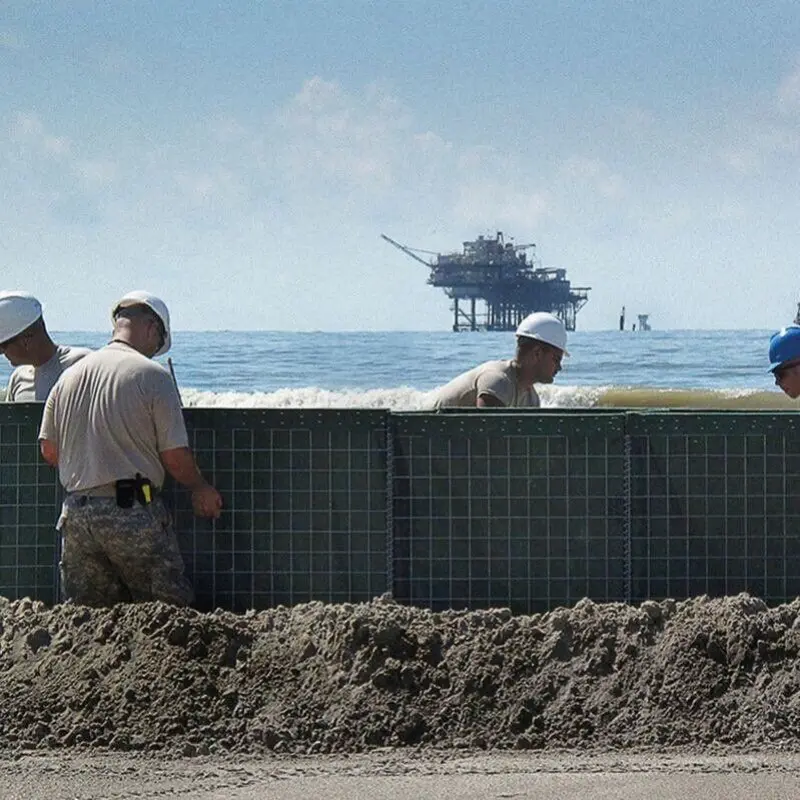

4. Protection Engineering of Seaside Area
Military Defensive Wall is more and more homemade at the seaside area as Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a strong Protection wall.
Packaging and Delivery
