3D Fence Panels

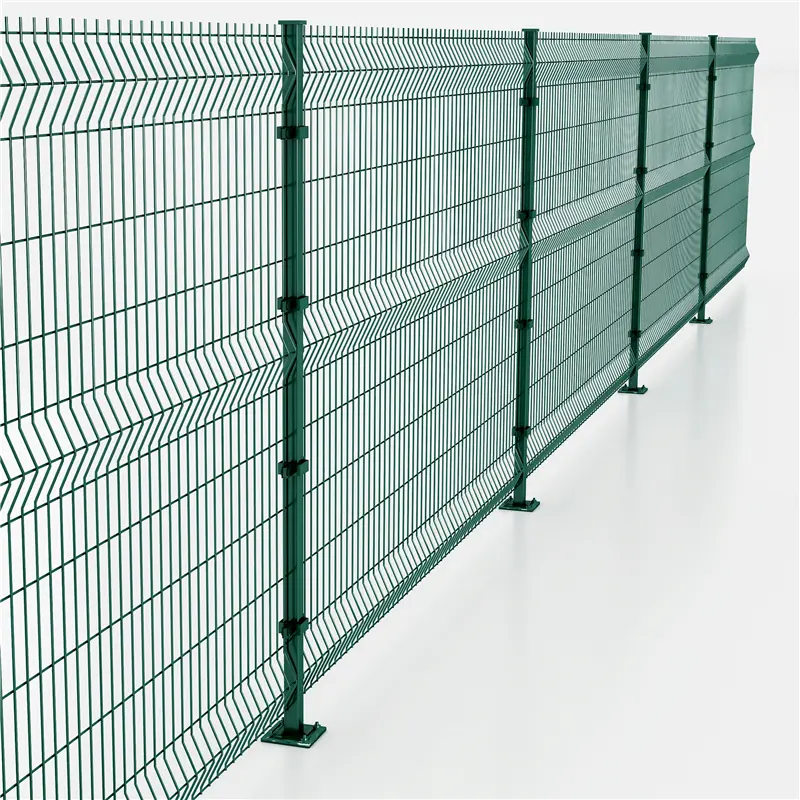

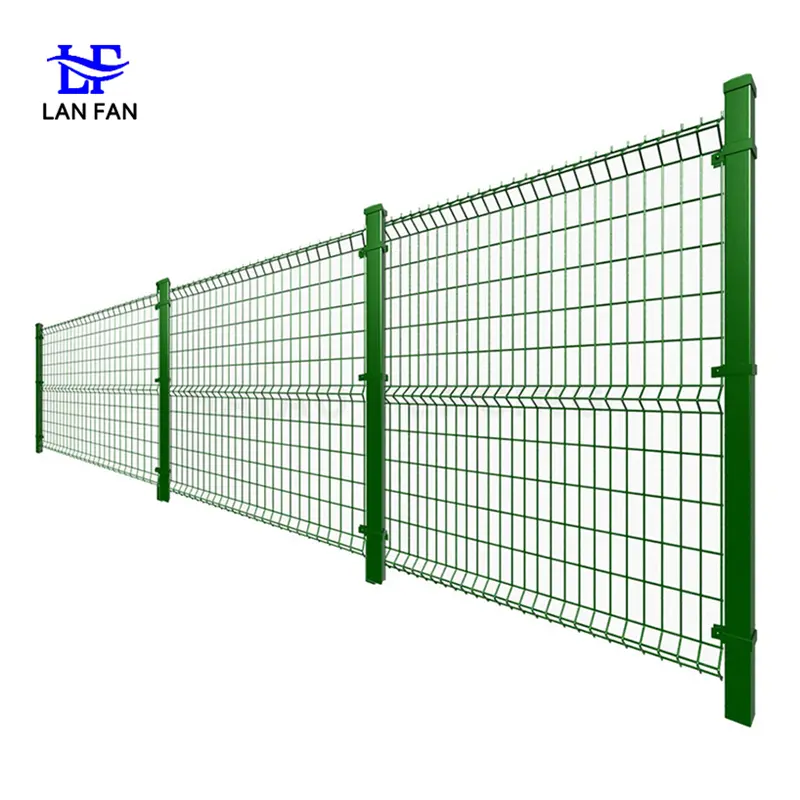

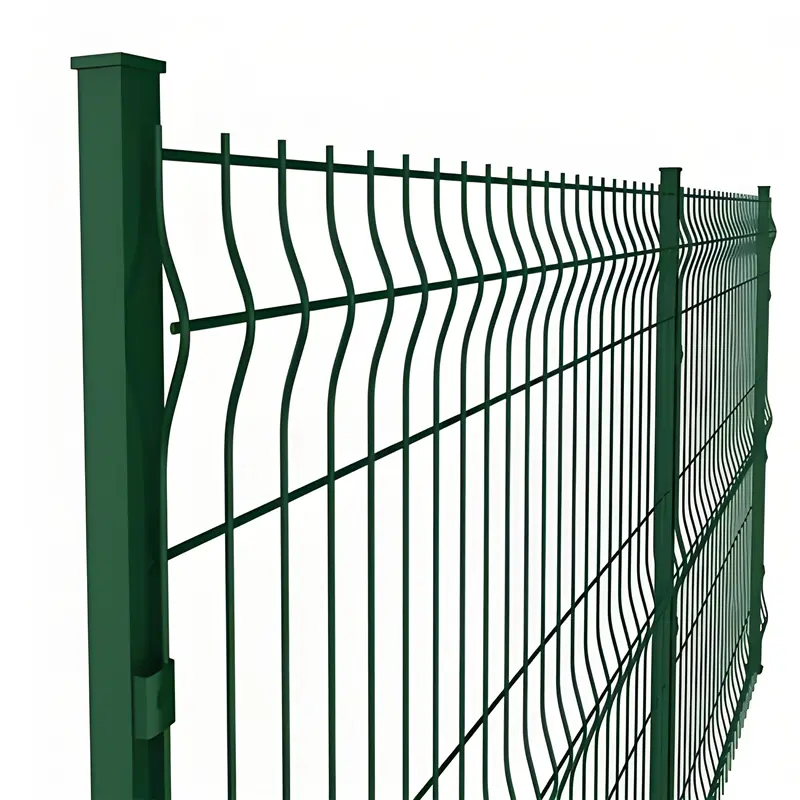

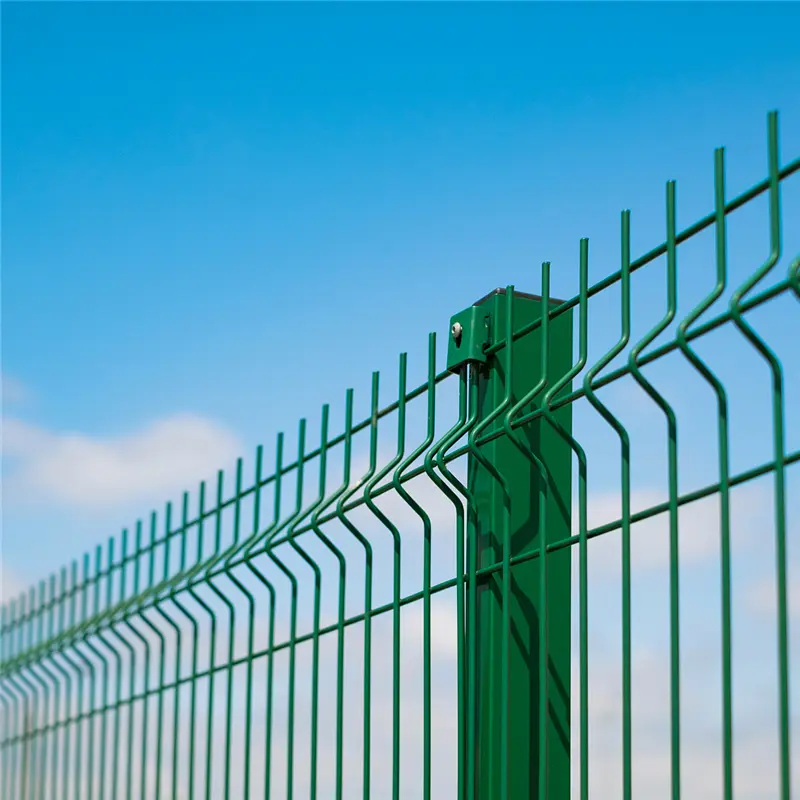

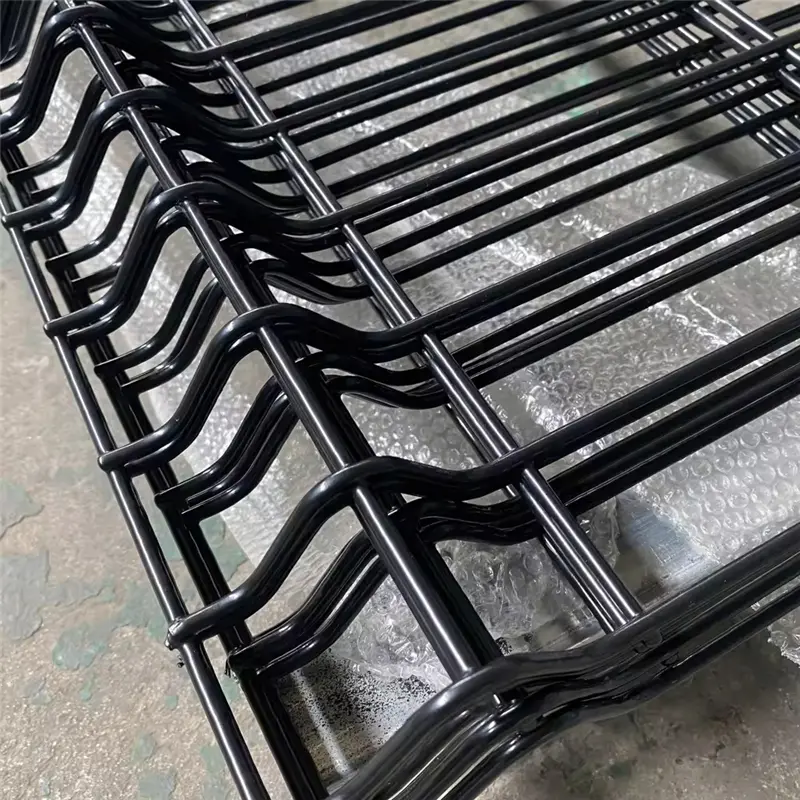

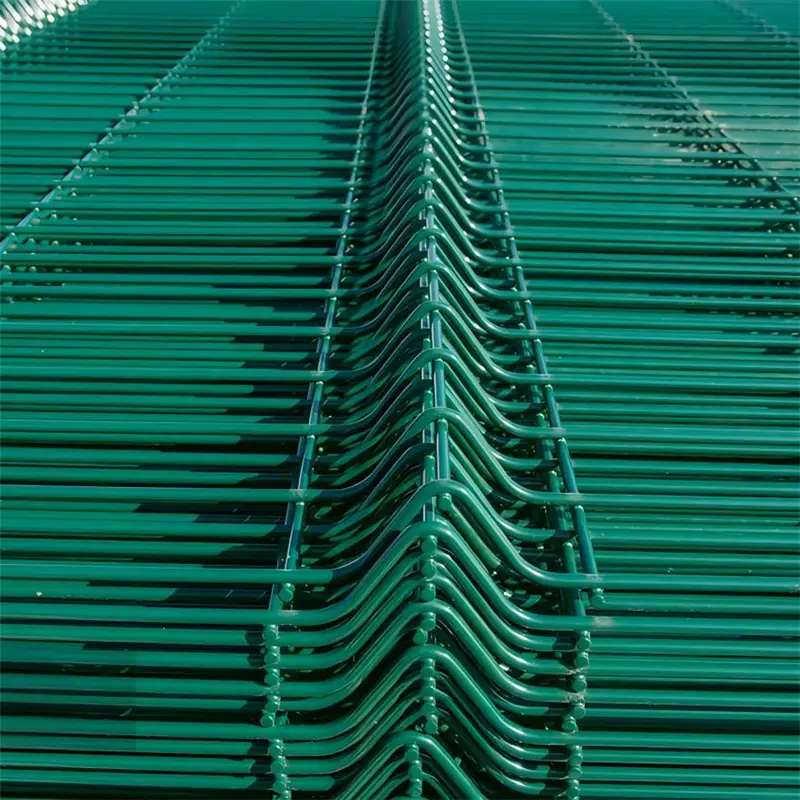

Triangle Bending Fence - 3D Curved Fence Panel
Product description
3D fencing, also known as highway isolation netting, features a smooth, pollution-free, non-toxic, and harmless mesh surface. It is corrosion-resistant, aging-resistant, sun-resistant, and resistant to high and low temperatures. Its outdoor service life can reach approximately 10 years. It offers long-term corrosion and UV resistance. The mesh surface is highly impact-resistant, strong, and rigid. It offers an aesthetically pleasing appearance, a wide field of vision, and is easy to install, creating a bright and relaxing atmosphere.
Specifications
1. Mesh Size: 1700mm H x 2500mm W, 1800mm H x 2500mm W, 1800mm H x 3000mm, 2000mm H x 2400mm, 1500mm H x 2500mm, etc.
2. Wire Diameter (Welding Wire Diameter) Range: 2.5mm - 6.0mm; Common sizes include 4.0mm, 4.5mm, 4.8mm, and 5.0mm.
3. Mesh Size: 70mm H x 140mm - 80mm H x 160mm; the most common sizes are 50mm H x 100mm, 75mm H x 150mm, 50mm H x 200mm, and 60mm H x 150mm.

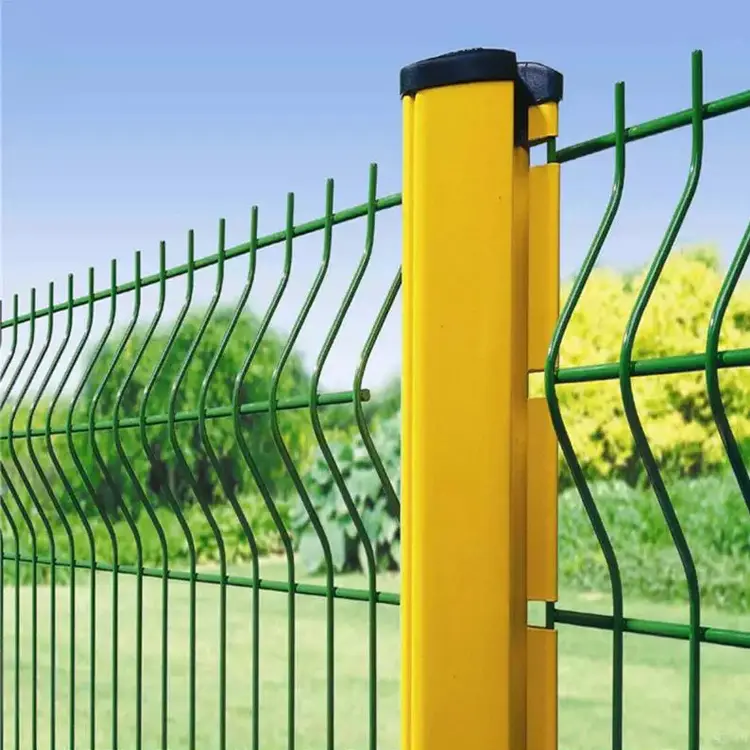

4. Posts: 48mm H x 1.0mm, 1.2mm H x 1.5mm, or 2.0mm thick round tube. Ordinary round tubes are usually used, with a plastic cap or rain cap on top.
5. Surface Anti-corrosion Treatment: Highway fence products are manufactured using electro-galvanized or hot-dip galvanized steel wire welded together and then dipped in plastic; or using low-carbon black steel wire welded together and then directly dipped in plastic (PE); electroplating plus dipping; galvanizing plus spray coating or painting.

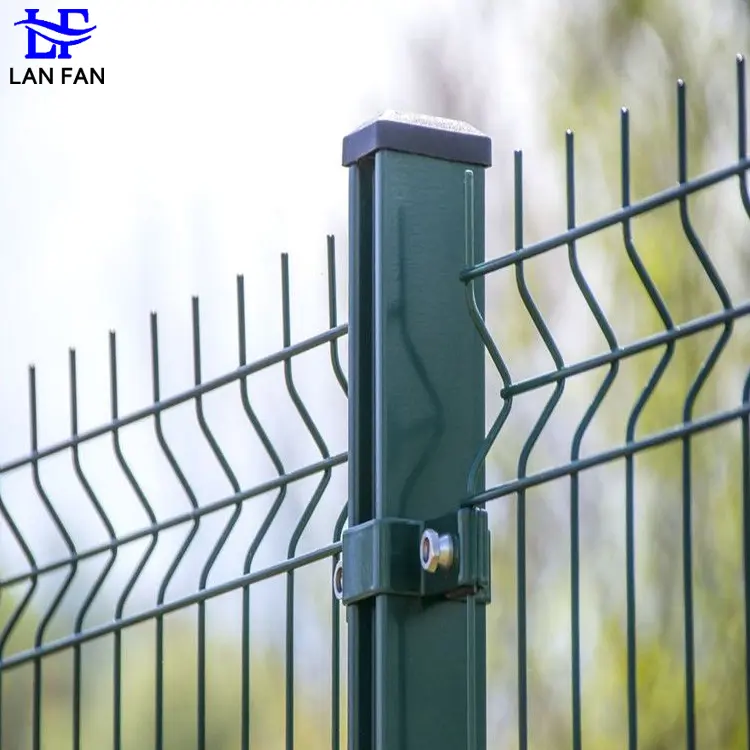

6. Installation Accessories: The welded fence panels are connected to the posts using screws, various specialized metal clips, or lashing wire. All screws are automatic anti-theft type. Frame fence accessories can also be customized to meet customer requirements.
| Welded Security Fence(3D) | |||||
| Mesh Dimension(mm) | Wire Diameter(mm) | Fence Height(mm) | Curve Quantity | Fence Width | Post |
| 50*100 | 4mm/5mm | 2000mm | 1-1.3M 2 curves | 2000mm-3000mm | Size OD: 60*60mm or 60×80mm Thickness: 1.2mm or 1.5mm Length: 2.2m or 2.5m |
| 50*150 | 4mm/5mm | 2000mm | 1.6-1.9M 3 curves | 2000mm-3000mm | |
| 50*200 | 4mm/5mm | 2000mm | 1.9-2.1 3 curves | 2000mm-3000mm | |
| 50*200 | 4mm/5mm | 2000mm | 2.1-2.4 4 curves | 2000mm-3000mm | |
| 75x150mm | 4mm/5mm | 2000mm | 1.9-2.1 3 curves | 2000mm-3000mm | |
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||
| Color available: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color customized | |||||
| Note:The fence can be customized according to your required if above specification is not satisfied with you. | |||||
Fence Application

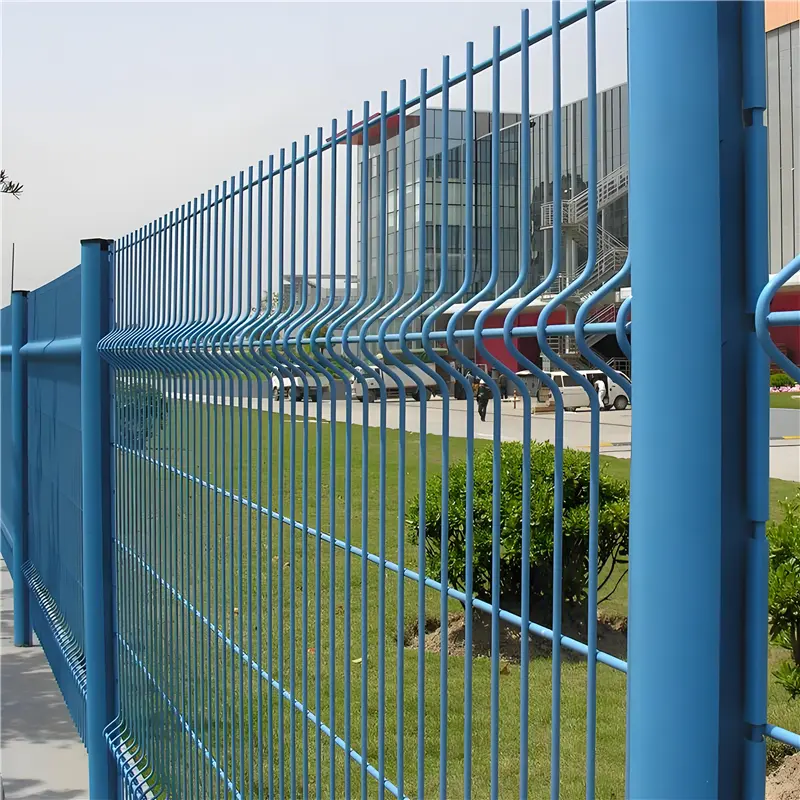

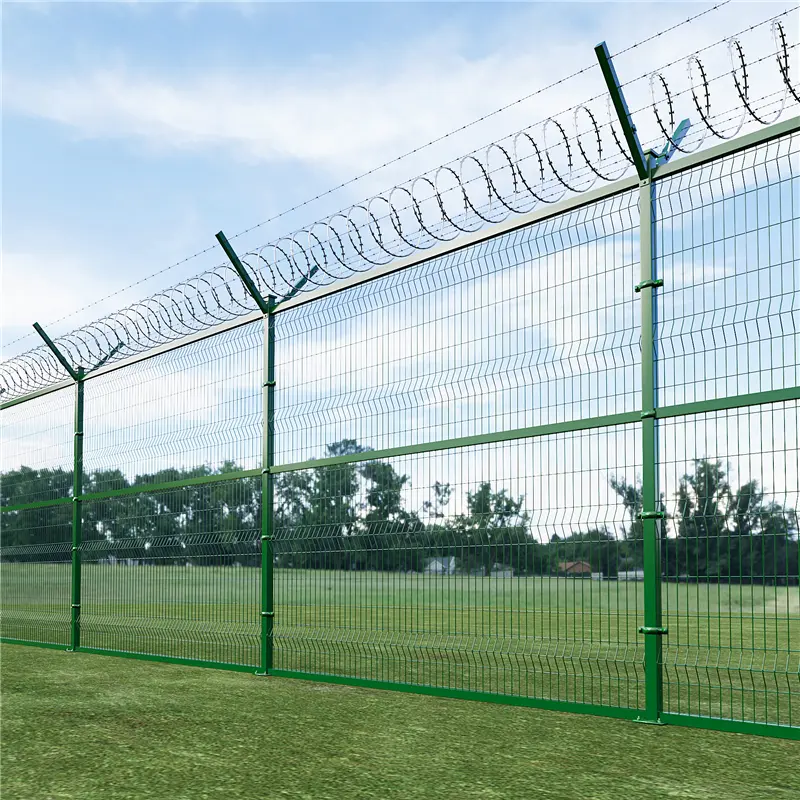

The 3D fences are primarily used in highways, railways, civil construction, factories, municipal landscaping, protection, and aquaculture. Highway fences offer excellent stability and strength, and can be welded with low-carbon steel wire within the frame. These fences are used for sites, bridges, and other applications. We can customize or recommend suitable product solutions based on customer design requirements. We provide application solutions and recommendations for specific product specifications, as well as cost estimates based on our own design drawings. Please contact us for consultation and collaboration, and we can customize fences of various specifications.
products Features
Anti-corrosion Treatment: After rust removal, polishing, passivation, and vulcanization, plastic electroplating is applied. The coating is fruit green in color and 0.6-1.6mm thick. Imported weather-resistant resin powder is used for the electroplating, offering enhanced aging resistance. The coating must be uniform in color and smooth, free of dripping, excessive agglomeration, and free of defects such as missing plating and exposed iron.
3D Fence Style: bending, frame, corrugated, double-loop, and double-sided wire.
Surface colors available: white, green, dark green, grass green, black, blue, and yellow.
Weave features: Woven and welded; the mesh structure is simple, easy to transport, and can be installed regardless of terrain, making it particularly suitable for mountainous, sloping, and winding areas. The product is durable and affordable, making it suitable for large-scale use.
Surface Treatment
Hot dipped galvanized welded mesh + powder coating & PVC coated
Q&A
1. Is your fence sample free?
Yes, we can provide free sample to customer for checking its quality.
2. How many days will the sample fence be finished?
Normally our fence samples will be sent immediately by express in 2~3 days if the goods are in stock.
3. How long does it take you to get fence mass production?
Normally within 20-25 days according to your specific orders quantities.
4. Are you a manufacture?
As multi-speciality factory, We are a leading professional wire mesh specializing wire mesh fence which is verified by well-known testing institutions INTERTEK and alibaba. We currently offer chain link fence, gabion(Welded Gabion/Hexagonal Gabion, wall spike, temporary fence, barbed wires, razor wires1000+ metal wire mesh products, product customization according to customer requirements such as wire diameter openings and other specification, we have reliable shipping agent and provide you reasonable arrangement for delivery, moreover our professional installation team will provide you safe and easy installation assistance to make sure your construction plan complete as scheduled.
5. Is customization available?

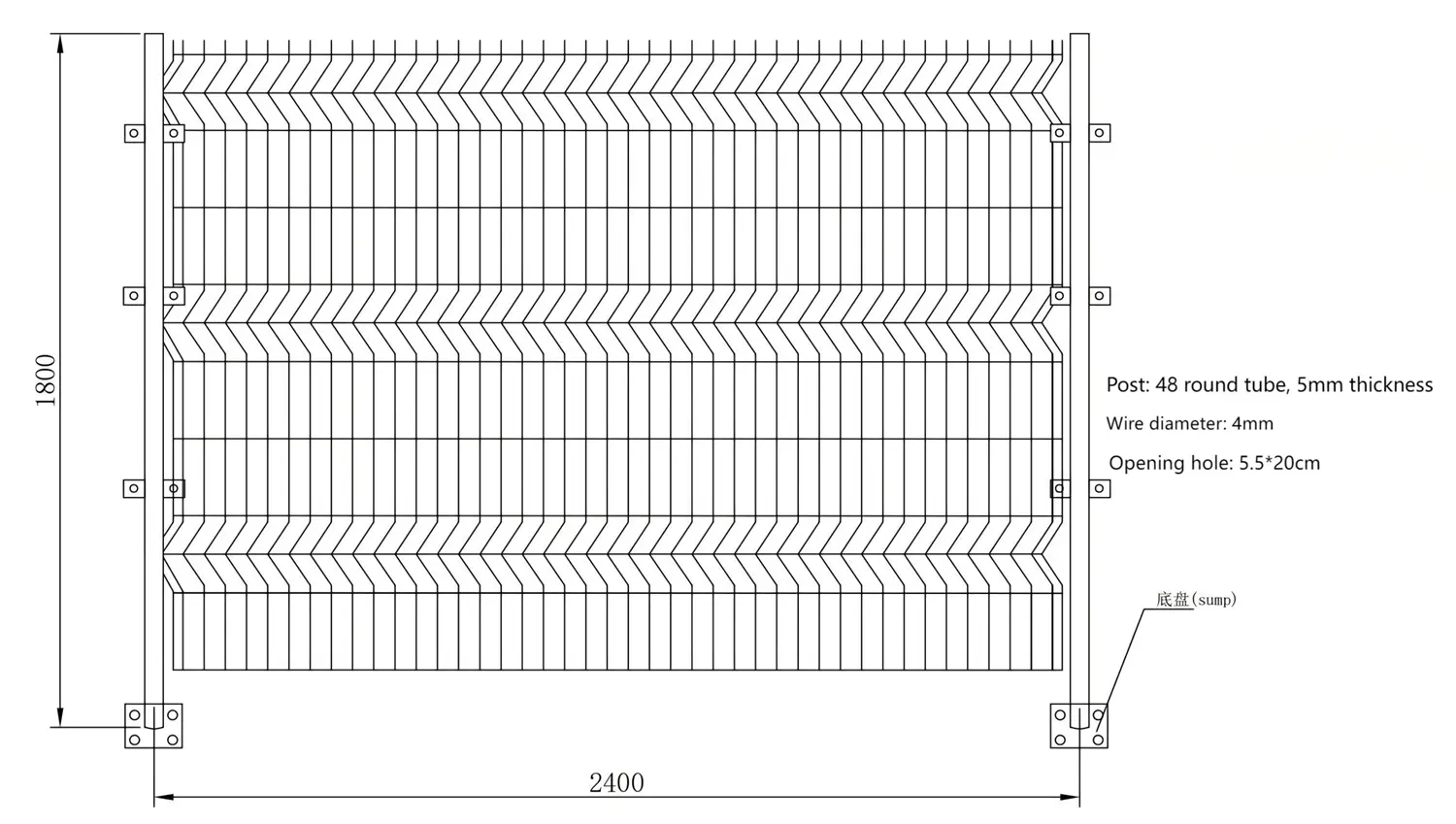

Yes, we can OEM according to your detailed request, and we can supply fence drawings as your design. with high strength and good aesthetic effect, we will offer you the best fencing solution.
6. Does your wire mesh products have quality assurance?
Our factory has passed the ISO 9001:2000 quality control, and all series of fences produced conform to the CE standard certification of the Italian inspection agency.
